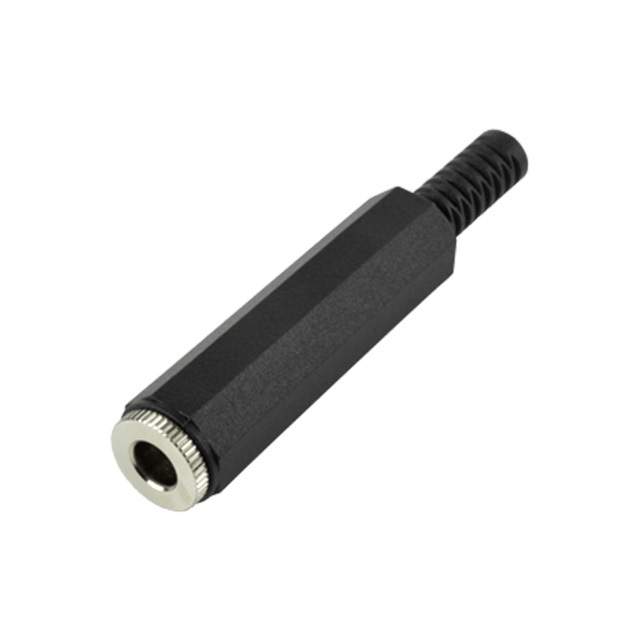

MR-6330A
Barrel - Audio Connectors
- Manufacturer No:
- MR-6330A
- Manufacture:
- CUI, Inc.
- Datasheet:
- MR-6330A
- Description:
- AUDIO JACK, 6.3 MM, STRAIGHT, 3
In Stock
401 pcs On sales
$2.78
Product Parameter
- Body Color
- Silver, Black
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Insulation Color
- Black
- Termination
- Solder
- Internal Switch(s)
- Does Not Contain Switch
- Thread Size
- -
- Dielectric Material
- Acrylonitrile Butadiene Styrene (ABS)
- Signal Lines
- Mono
- Mating Length/Depth
- 1.220" (31.00mm)
- Body Material
- Brass
- Current Rating (Amps)
- 1A
- Gender
- Female
- Cable Opening
- 0.315" (8.00mm)
- Operating Temperature
- -25°C ~ 70°C
- Series
- -
- Mounting Type
- Free Hanging (In-Line)
- Contact Material - Plating
- Gold
- Features
- Cover
- Connector Type
- Phone Jack
- Number of Positions/Contacts
- 2 Conductors, 3 Contacts
- Includes
- 2 pcs - 1 Connector, 1 Cover
- Actual Diameter
- 0.253" (6.43mm)
- Industry Recognized Mating Diameter
- 6.35mm (0.250", 1/4") - Headphone
- Packaging
- Bulk
- Panel Hole Size
- -
- Shielding
- Unshielded
- Voltage - Rated
- 12VDC
