CSS-1021028N
Speakers
- Manufacturer No:
- CSS-1021028N
- Manufacture:
- CUI, Inc.
- Datasheet:
- CSS-1021028N
- Description:
- SPEAKER 8OHM 10W TOP PORT 107DB
In Stock
909 pcs On sales
$6.01
Product Parameter
- Port Location
- Top
- Power - Rated
- 10W
- Type
- General Purpose
- Frequency Range
- 92Hz ~ 7.8kHz
- Shape
- Round, Square Frame
- Material - Cone
- Paper/Foam
- Series
- CSS
- Efficiency - dBA
- 107.00
- Ratings
- -
- Size / Dimension
- 4.016" L x 4.016" W (102.00mm x 102.00mm)
- Impedance
- 8 Ohms
- Efficiency - Type
- Sound Pressure Level (SPL)
- Packaging
- Box
- Material - Magnet
- Nd-Fe-B
- Technology
- Magnetic
- Ingress Protection
- -
- Part Status
- Active
- Efficiency - Testing
- 1W/100mm
- Power - Max
- 12W
- Height - Seated (Max)
- 1.398" (35.50mm)
- Termination
- Solder Eyelet(s)
- Frequency - Self Resonant
- 115Hz
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
CSS-1021028N Relevant information

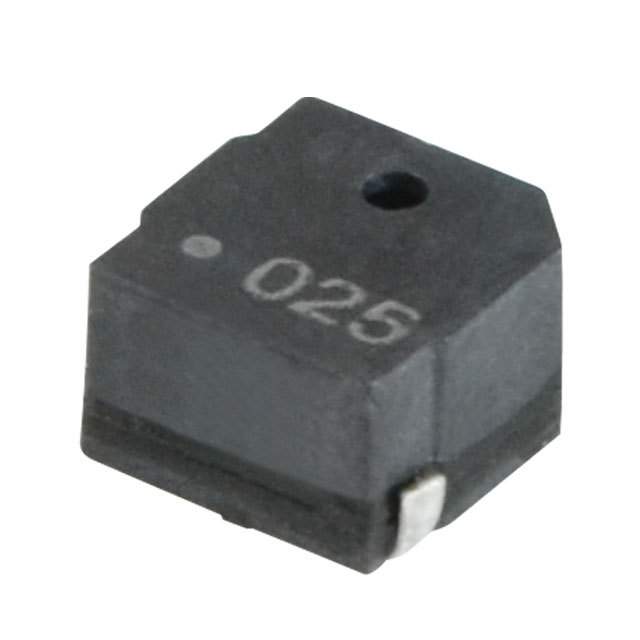

CSS-0575A-SMT-TR
AUDIO MAGNETIC XDCR 2-4V SMD

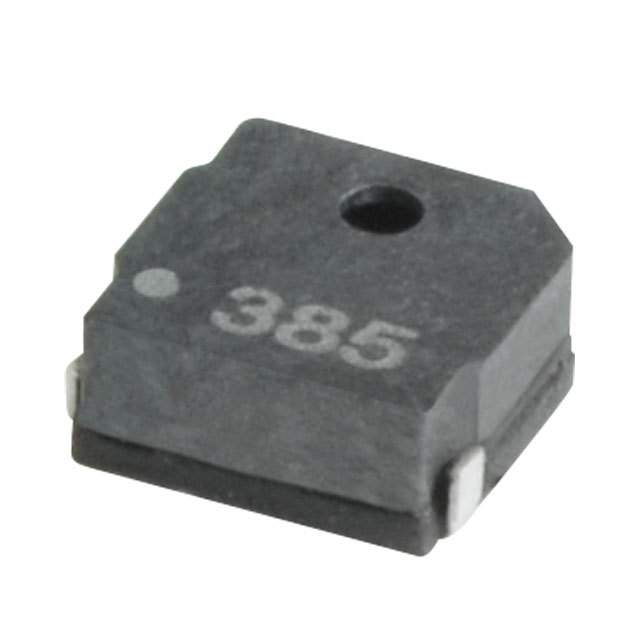

CSS-0575B-SMT-TR
AUDIO MAGNETIC XDCR 2-4V SMD

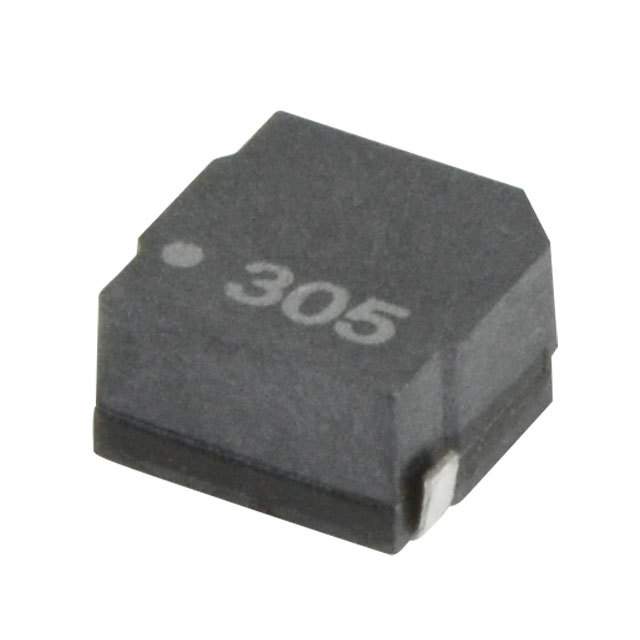

CSS-0578-SMT-TR
AUDIO MAGNETIC XDCR 2-4V SMD
CSS-1021028N
SPEAKER 8OHM 10W TOP PORT 107DB

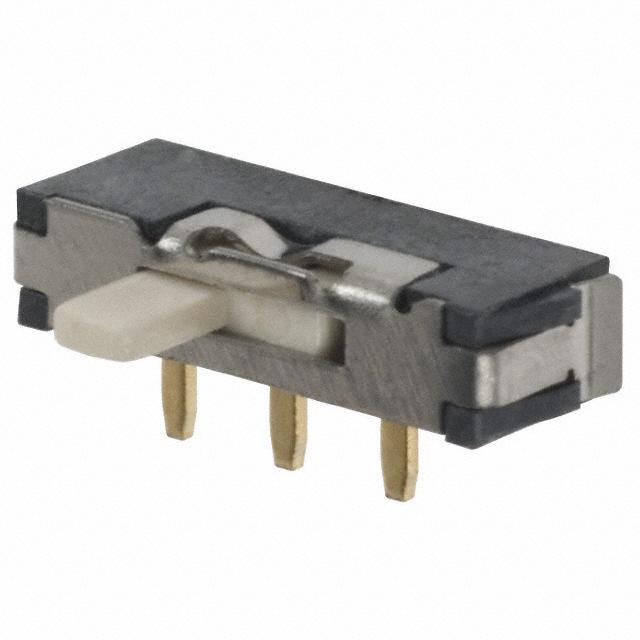

CSS-1210MC
SWITCH SLIDE SPDT 100MA 12V
CSS-1210TB
SWITCH SLIDE SPDT 100MA 12V
