CPI-42533C-120
Alarms, Buzzers, and Sirens
- Manufacturer No:
- CPI-42533C-120
- Manufacture:
- CUI, Inc.
- Datasheet:
- CPI-42533C-120
- Description:
- AUDIO PIEZO INDICATOR 6-28V
In Stock
395 pcs On sales
$8.9
Product Parameter
- Approvals
- -
- Current - Supply
- 11mA, 13mA
- Frequency
- 2.8kHz
- Driver Circuitry
- Indicator, Internally Driven
- Packaging
- Tray
- Size / Dimension
- 1.673" Dia (42.50mm)
- Input Type
- DC
- Height - Seated (Max)
- 1.319" (33.50mm)
- Technology
- Piezo
- Operating Temperature
- -30°C ~ 85°C
- Part Status
- Active
- Sound Pressure Level (SPL)
- 87dB @ 12V, 30cm
- Termination
- Wire Leads
- Mounting Type
- Panel Mount
- Port Location
- Top
- Series
- CPI
- Voltage Range
- 6 ~ 28V
- Ratings
- -
- Operating Mode
- Pin Selectable
- Duration
- -
- Voltage - Rated
- 12V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
CPI-42533C-120 Relevant information
CPI-4232C-120
AUDIO PIEZO IND 8-18V PNL MNT

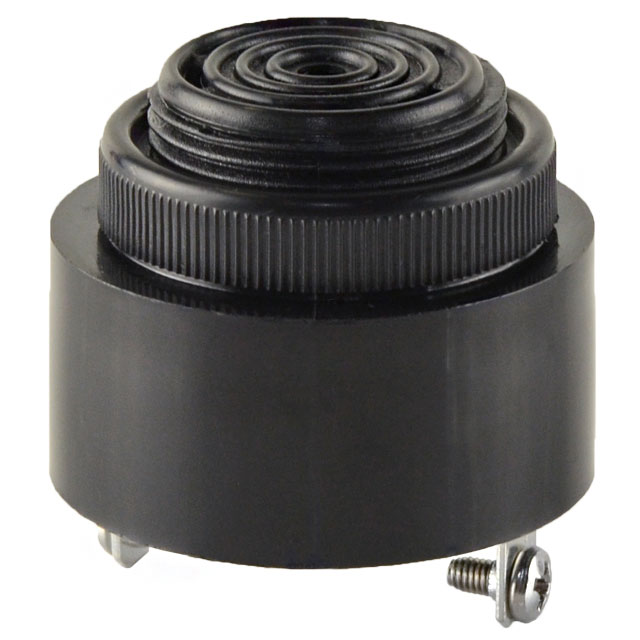

CPI-4233C-120
AUDIO PIEZO IND 6-28V PNL MNT
CPI-42533C-120
AUDIO PIEZO INDICATOR 6-28V

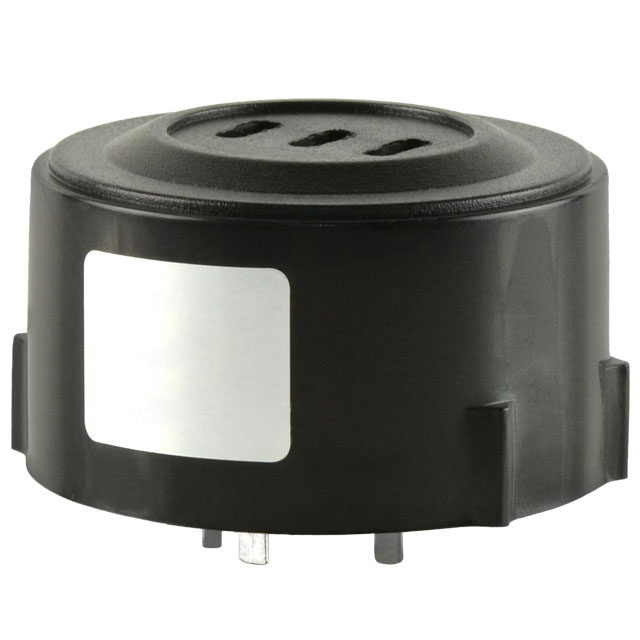

CPI-4929C-120
