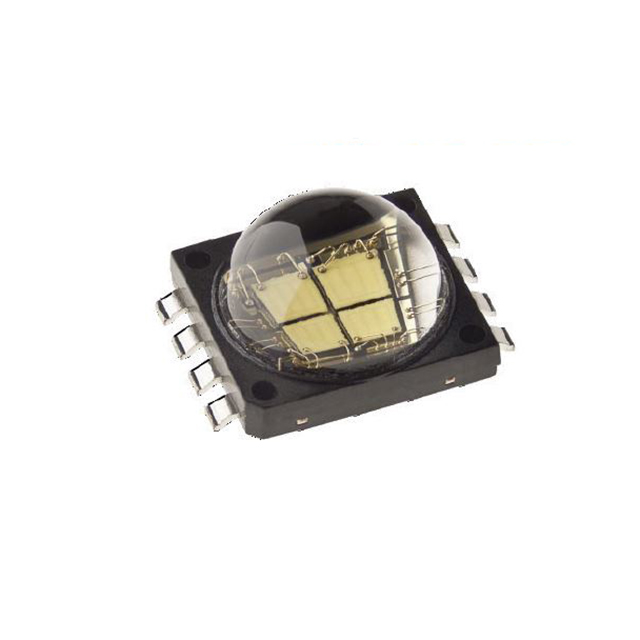

MCE4CT-A2-0000-00A4AAAB1
LED Lighting - Color
- Manufacturer No:
- MCE4CT-A2-0000-00A4AAAB1
- Manufacture:
- Cree Inc.
- Package:
- 8-SMD, Gull Wing Exposed Pad
- Datasheet:
- MCE4CT-A2-0000-00A4AAAB1
- Description:
- LED RGBW XLAMP WTR CLR SMD
In Stock
870 pcs On sales
$14.14
Product Parameter
- Mounting Type
- Surface Mount
- Flux @ Current/Temperature - Test
- 31lm Red, 67lm Green, 8lm Blue, 80lm White
- Viewing Angle
- 115°
- Current - Test
- 350mA Red, 350mA Green, 350mA Blue, 350mA White
- Package / Case
- 8-SMD, Gull Wing Exposed Pad
- Base Part Number
- MCE4CT
- Size / Dimension
- 0.276" L x 0.295" W (7.00mm x 7.50mm)
- Color
- Red, Green, Blue, White - Neutral (RGBW)
- Temperature - Test
- 25°C
- Series
- XLamp® MC-E
- Height - Seated (Max)
- 0.184" (4.68mm)
- Packaging
- Cut Tape (CT)
- Supplier Device Package
- SMD
- Wavelength
- 625nm Red, 528nm Green, 458nm Blue, 4000K White
- Lumens/Watt @ Current - Test
- 42 lm/W Red, 56 lm/W Green, 7 lm/W Blue, 71 lm/W White, Neutral
- Part Status
- Active
- Voltage - Forward (Vf) (Typ)
- 2.1V Red, 3.4V Green, 3.2V Blue, 3.2V White
- Current - Max
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Thermal Resistance of Package
- 6°C/W
