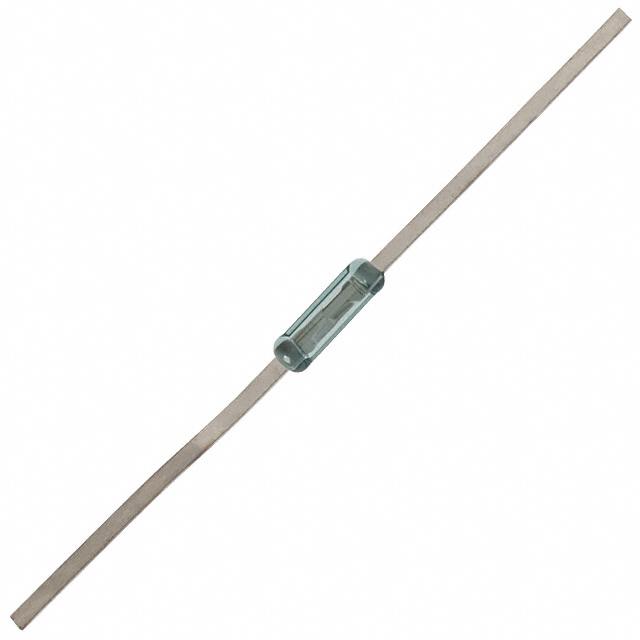

UM2S1020
Magnetic, Reed Switches
- Manufacturer No:
- UM2S1020
- Manufacture:
- Coto Technology
- Datasheet:
- UM2S1020
- Description:
- SWITCH REED SPST-NO 250MA 175V
In Stock
0 pcs On sales
$0
Product Parameter
- Operate Time
- 0.4ms
- Voltage - Switching AC
- 175V
- Release Time
- 0.1ms
- Voltage - Switching DC
- 175V
- Mounting Type
- Surface Mount
- Operate Range
- 10 ~ 20AT
- Power - Rated
- 5VA
- Type
- Glass Body
- Release Range
- -
- Series
- UM2
- Current - Carry
- 500mA (AC/DC)
- Circuit
- SPST-NO
- Length - Overall
- 1.355" (34.42mm)
- Packaging
- Bulk
- Termination Style
- Axial, Flat
- Capacitance
- 0.3pF
- Height Above Board
- -
- Part Status
- Obsolete
- Current - Switching
- 250mA (AC/DC)
- Size - Body
- 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm)
- Operating Temperature
- -40°C ~ 125°C
