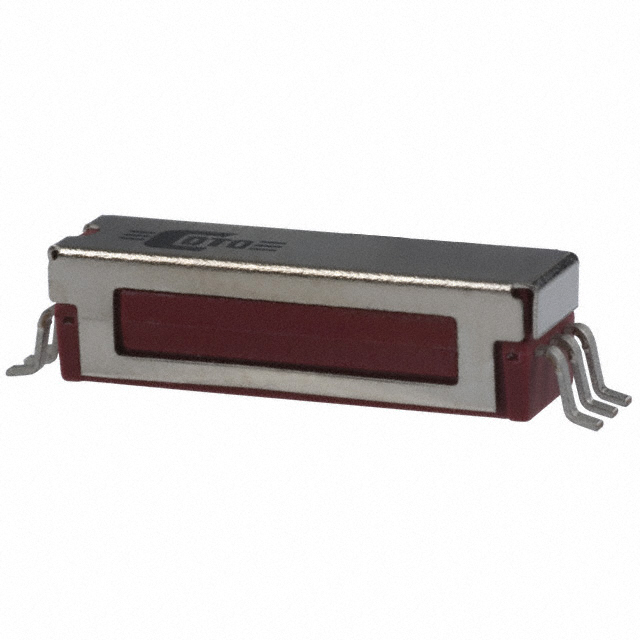

9290-05-00
High Frequency (RF) Relays
- Manufacturer No:
- 9290-05-00
- Manufacture:
- Coto Technology
- Datasheet:
- 9290-05-00
- Description:
- RELAY RF SPST 500MA 5V
In Stock
11421 pcs On sales
$7.71
Product Parameter
- Release Time
- 0.1ms
- Mounting Type
- Surface Mount
- Series
- 9290
- Coil Resistance
- 160 Ohms
- Features
- Magnetic Shield
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 200VAC, 200VDC - Max
- Packaging
- Tube
- Termination Style
- Gull Wing
- Coil Power
- -
- Must Operate Voltage
- 3.75 VDC
- Part Status
- Active
- Must Release Voltage
- 0.4 VDC
- Coil Current
- 31.3mA
- Operating Temperature
- -20°C ~ 85°C
- Coil Voltage
- 5VDC
- Contact Rating (Current)
- 500mA
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 0.4ms
