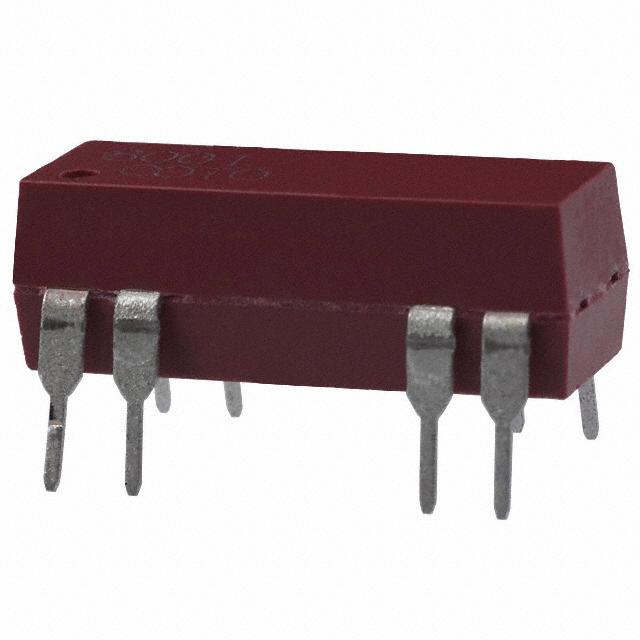

8041-05-111
Reed Relays
- Manufacturer No:
- 8041-05-111
- Manufacture:
- Coto Technology
- Datasheet:
- 8041-05-111
- Description:
- RELAY REED SPDT 250MA 5V
In Stock
0 pcs On sales
$0
Product Parameter
- Features
- Diode, Electrostatic Shield
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 100VAC, 100VDC - Max
- Packaging
- Tube
- Termination Style
- PC Pin
- Part Status
- Obsolete
- Must Operate Voltage
- 3.8 VDC
- Seal Rating
- -
- Must Release Voltage
- 0.5 VDC
- Coil Current
- 25.0mA
- Operating Temperature
- -20°C ~ 85°C
- Coil Voltage
- 5VDC
- Contact Rating (Current)
- 250mA
- Contact Form
- SPDT (1 Form C)
- Operate Time
- 1ms
- Release Time
- 1.5ms
- Mounting Type
- Through Hole
- Series
- 8000
- Coil Resistance
- 200 Ohms
