2342-12-000
Reed Relays
- Manufacturer No:
- 2342-12-000
- Manufacture:
- Coto Technology
- Datasheet:
- 2342-12-000
- Description:
- RELAY REED DPDT 250MA 12V
In Stock
2659 pcs On sales
$20.12
Product Parameter
- Part Status
- Active
- Must Operate Voltage
- 9 VDC
- Seal Rating
- Sealed - Hermetically
- Must Release Voltage
- 1 VDC
- Coil Current
- 12.0mA
- Operating Temperature
- -20°C ~ 85°C
- Coil Voltage
- 12VDC
- Contact Rating (Current)
- 250mA
- Contact Form
- DPDT (2 Form C)
- Operate Time
- 1.5ms
- Release Time
- 2ms
- Mounting Type
- Through Hole
- Series
- 2300
- Coil Resistance
- 1 kOhms
- Features
- -
- Contact Material
- -
- Coil Type
- Non Latching
- Switching Voltage
- 100VAC, 100VDC - Max
- Packaging
- Tray
- Termination Style
- PC Pin
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
2342-12-000 Relevant information
2342

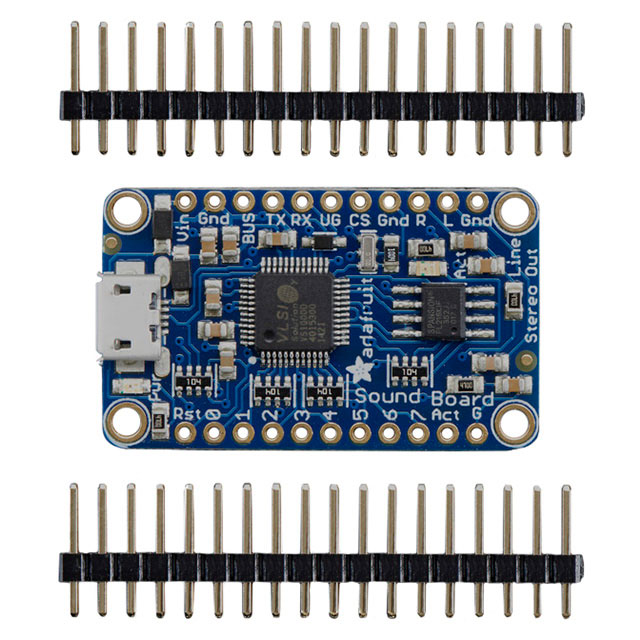

FX MINI SOUND BOARD WAV/OGG
