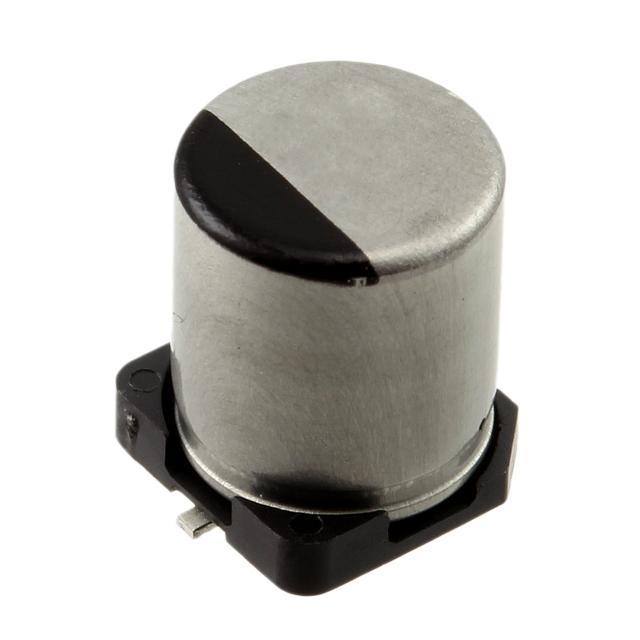

HZA227M025F24T-F
Aluminum - Polymer Capacitors
- Manufacturer No:
- HZA227M025F24T-F
- Manufacture:
- Cornell Dubilier Electronics (CDE)
- Package:
- Radial, Can - SMD
- Datasheet:
- HZA227M025F24T-F
- Description:
- CAP ALUM POLY HYB 220UF 25V SMD
In Stock
0 pcs On sales
$1.29
Product Parameter
- Applications
- Automotive, Bypass, Decoupling
- ESR (Equivalent Series Resistance)
- 27mOhm
- Lead Spacing
- -
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Voltage - Rated
- 25V
- Type
- Hybrid
- Lifetime @ Temp.
- 10000 Hrs @ 105°C
- Series
- HZA
- Size / Dimension
- 0.315" Dia (8.00mm)
- Ratings
- AEC-Q200
- Height - Seated (Max)
- 0.413" (10.50mm)
- Packaging
- Tape & Reel (TR)
- Operating Temperature
- -55°C ~ 105°C
- Tolerance
- ±20%
- Surface Mount Land Size
- 0.327" L x 0.327" W (8.30mm x 8.30mm)
- Capacitance
- 220µF
- Ripple Current @ Low Frequency
- 230mA @ 120Hz
- Part Status
- Active
- Ripple Current @ High Frequency
- 2.3A @ 100kHz
