DLS1PP5AN23X
D-Sub Connectors
- Manufacturer No:
- DLS1PP5AN23X
- Manufacture:
- CONEC
- Datasheet:
- DLS1PP5AN23X
- Description:
- CONN D-SUB PLUG 9POS R/A SLDR
In Stock
90 pcs On sales
$6.34
Product Parameter
- Wire Gauge
- -
- Connector Style
- D-Sub - Stacked
- Part Status
- Active
- Contact Material
- Copper Alloy
- Termination
- Solder
- Ingress Protection
- IP20
- Contact Form
- Stamped
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Type
- Signal
- Number of Positions
- 9, 9
- Mounting Type
- Board Edge, Through Hole, Right Angle
- Current Rating (Amps)
- 7.5A
- Connector Type
- Plug, Male Pins
- Operating Temperature
- -55°C ~ 125°C
- Contact Finish
- Gold
- Shell Material, Finish
- Steel, Tin Plated
- Color
- Black
- Flange Feature
- Housing/Shell (4-40)
- Contact Finish Thickness
- 8.00µin (0.203µm)
- Series
- -
- Number of Rows
- 2, 2
- Material Flammability Rating
- UL94 V-0
- Features
- Board Lock, Grounding Indents, Mounting Brackets
- Voltage Rating
- 125V
- Shell Size, Connector Layout
- 1 (DE, E); 1 (DE, E)
- Packaging
- Bulk
- Backset Spacing
- -
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
DLS1PP5AN23X Relevant information
DLS1PP5AN23X
CONN D-SUB PLUG 9POS R/A SLDR
DLS1SP5AN21X
CONN D-SUB PLUG/RCPT 9POS R/A
DLS1SS5AN21X
CONN D-SUB RCPT 9POS R/A SLDR
DLS1XP5AK38X
CONN D-SUB PLUG 9POS R/A SOLDER

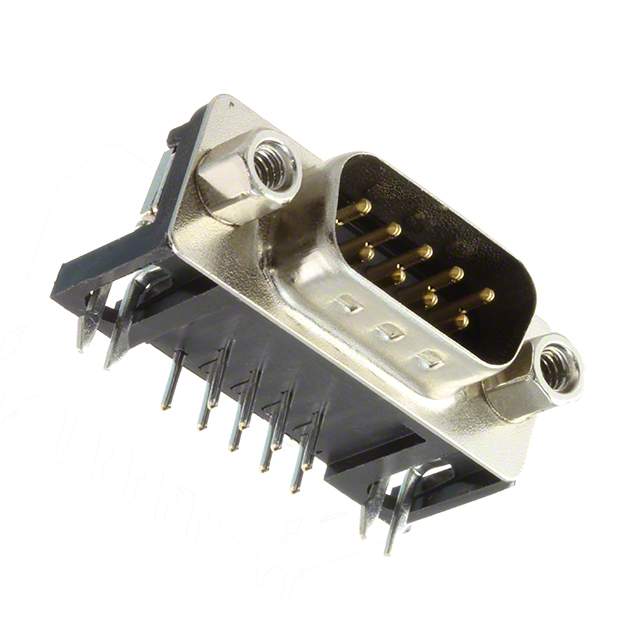

DLS1XP5AK40X
CONN D-SUB PLUG 9 POS R/A SOLDER

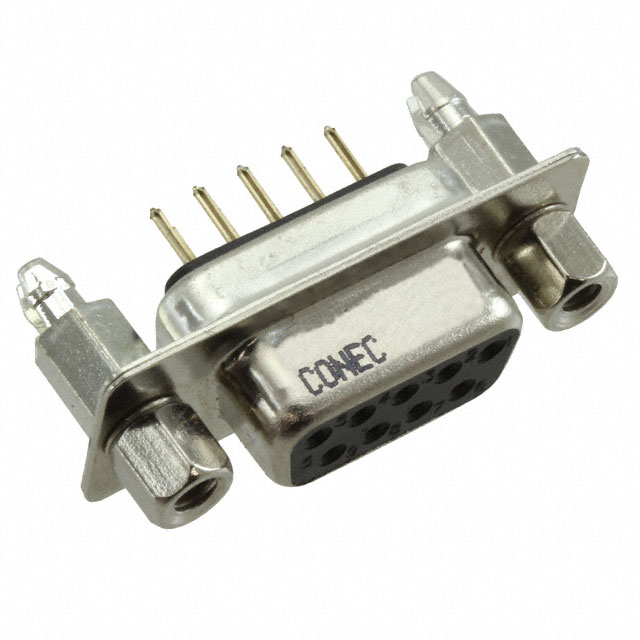

DLS1XS4AA39X
