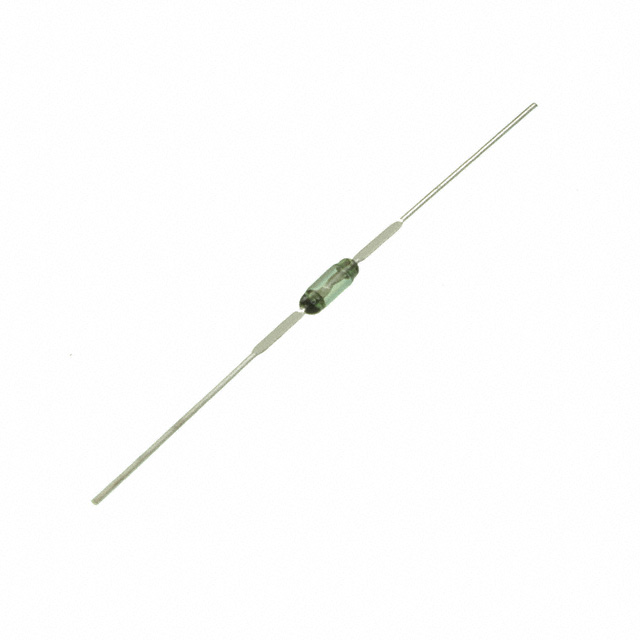

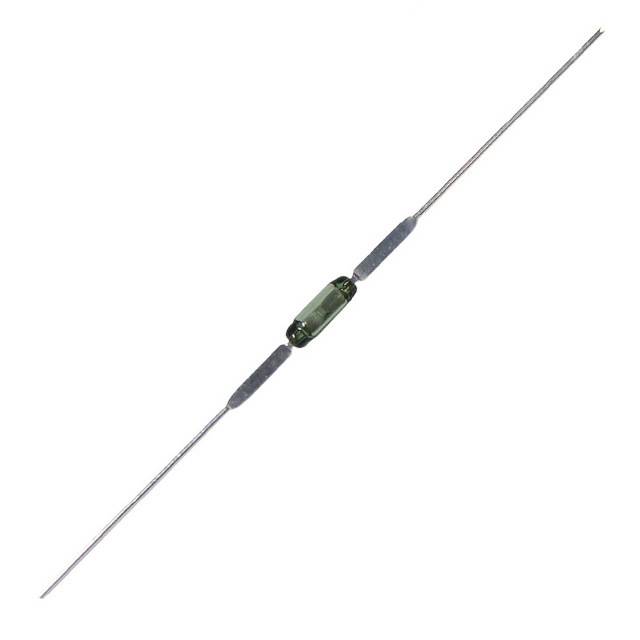

RI-80GP0510
Magnetic, Reed Switches
- Manufacturer No:
- RI-80GP0510
- Manufacture:
- Comus International
- Datasheet:
- RI-80GP0510
- Description:
- SWITCH REED SPST-NO 250MA 140V
In Stock
68557 pcs On sales
$1.37
Product Parameter
- Capacitance
- 0.45pF
- Height Above Board
- -
- Part Status
- Active
- Current - Switching
- 250mA (AC), 350mA (DC)
- Size - Body
- 0.071" Dia x 0.197" L (1.80mm x 5.00mm)
- Operating Temperature
- -55°C ~ 125°C
- Operate Time
- 0.35ms
- Voltage - Switching AC
- 140V
- Release Time
- 0.02ms
- Voltage - Switching DC
- 200V
- Mounting Type
- Through Hole
- Operate Range
- 5 ~ 10AT
- Power - Rated
- 5W
- Type
- Glass Body
- Release Range
- -
- Series
- RI-80
- Current - Carry
- 500mA (AC/DC)
- Circuit
- SPST-NO
- Length - Overall
- 1.811" (46.00mm)
- Packaging
- Bulk
- Termination Style
- Axial
