VBM501
Coaxial Connectors (RF)
- Manufacturer No:
- VBM501
- Manufacture:
- Cinch Connectivity Solutions Vitelec
- Datasheet:
- VBM501
- Description:

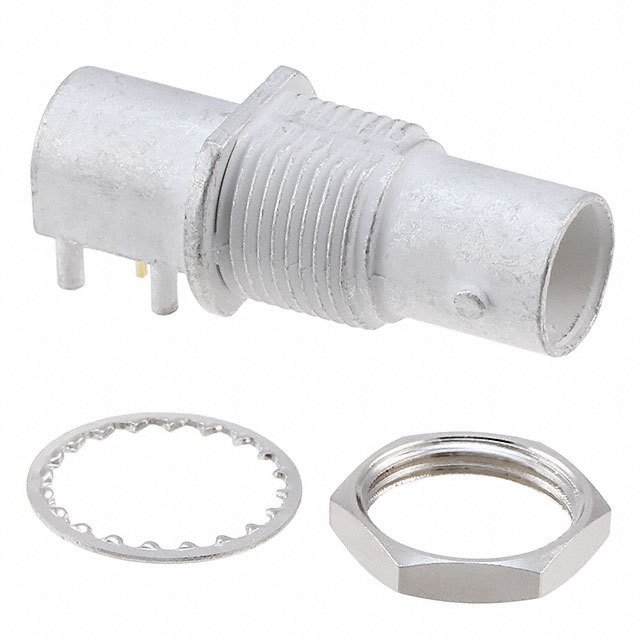

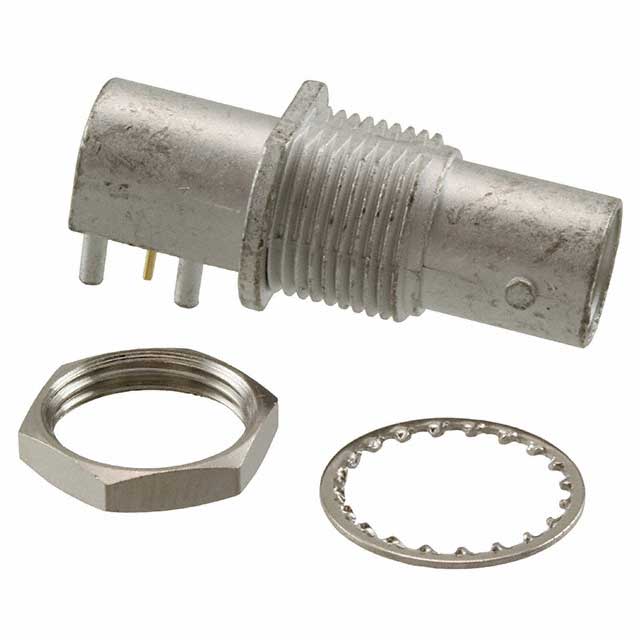

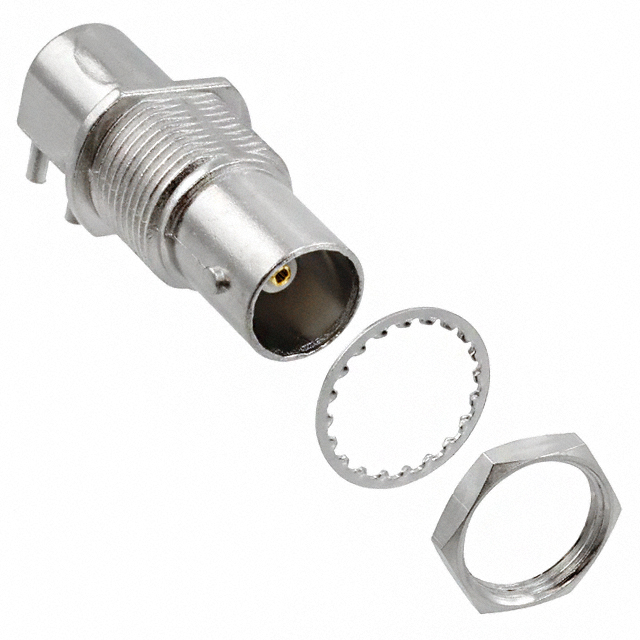

- CONN BNC JACK R/A 50 OHM PCB
In Stock
0 pcs On sales
$12.04
Product Parameter
- Packaging
- Bulk
- Connector Style
- BNC
- Body Finish
- Nickel
- Frequency - Max
- 1GHz
- Cable Group
- -
- Number of Ports
- 2
- Part Status
- Active
- Mounting Feature
- Bulkhead - Front Side Nut
- Body Material
- Zinc Alloy
- Ingress Protection
- -
- Housing Color
- Silver
- Shield Termination
- Solder
- Mating Cycles
- 500
- Contact Termination
- Solder
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Dielectric Material
- Polypropylene (PP)
- Series
- -
- Connector Type
- Jack, Female Socket
- Operating Temperature
- -65°C ~ 165°C
- Features
- Board Lock
- Fastening Type
- Bayonet Lock
- Center Contact Plating
- Gold
- Includes
- 5 pcs - 1 Connector, 2 Lockwashers, 2 Nuts
- Insertion Loss
- -
- Center Contact Material
- Phosphor Bronze
- Impedance
- 50Ohm
- Voltage Rating
- 500V
