SPDC241201
AC DC Converters
- Manufacturer No:
- SPDC241201
- Manufacture:
- Carlo Gavazzi Inc.
- Datasheet:
- SPDC241201
- Description:
- AC/DC CONVERTER 120W 24VDC
In Stock
16 pcs On sales
$166.95
Product Parameter
- Mounting Type
- DIN Rail
- Current - Output (Max)
- 5A
- Power (Watts)
- 120W
- Voltage - Input
- 85 ~ 264 VAC, 127 ~ 375 VDC
- Size / Dimension
- 4.49" L x 1.26" W x 4.88" H (114.0mm x 32.0mm x 124.0mm)
- Number of Outputs
- 1
- Type
- Enclosed
- Voltage - Output 1
- 24V
- Series
- SPDC (120W)
- Voltage - Output 2
- -
- Features
- Adjustable Output, IP20, PFC, Universal Input
- Voltage - Output 3
- -
- Approvals
- CE, cULus, cURus
- Voltage - Output 4
- -
- Efficiency
- 91%
- Voltage - Isolation
- 3kV
- Part Status
- Active
- Minimum Load Required
- -
- Applications
- Industrial, ITE (Commercial)
- Operating Temperature
- -25°C ~ 70°C (With Derating)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SPDC241201 Relevant information

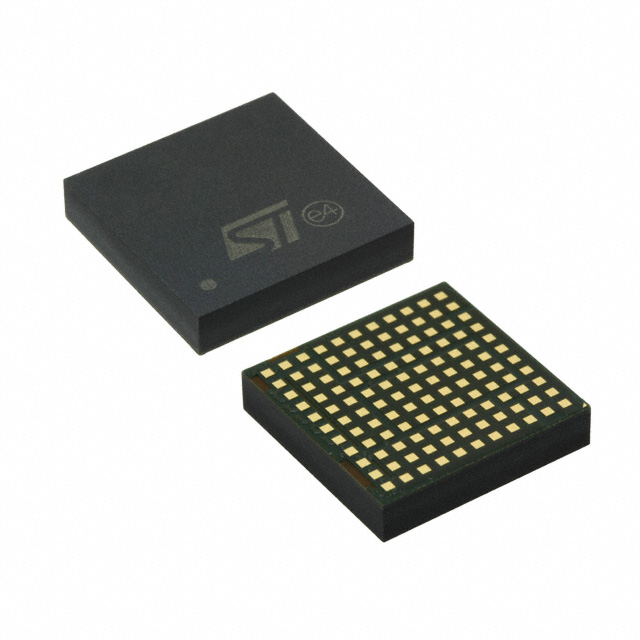

SPDC12L00010
DC DC CONVERTER 0.6-5V 10A
SPDC241201
AC/DC CONVERTER 120W 24VDC
SPDC242401
AC/DC CONVERTER 240W 24VDC
SPDC244801
AC/DC CONVERTER 480W 24VDC
SPDC400FC12M0.35
DC DC CONVERTER -12V

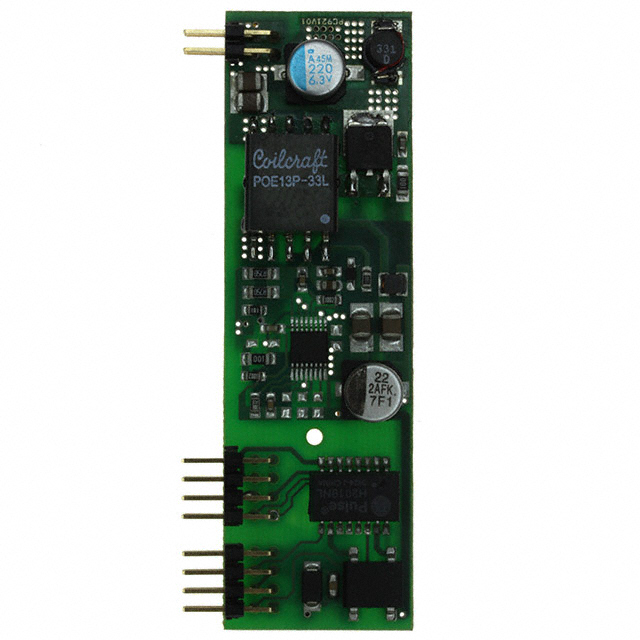

SPDCPOE03
