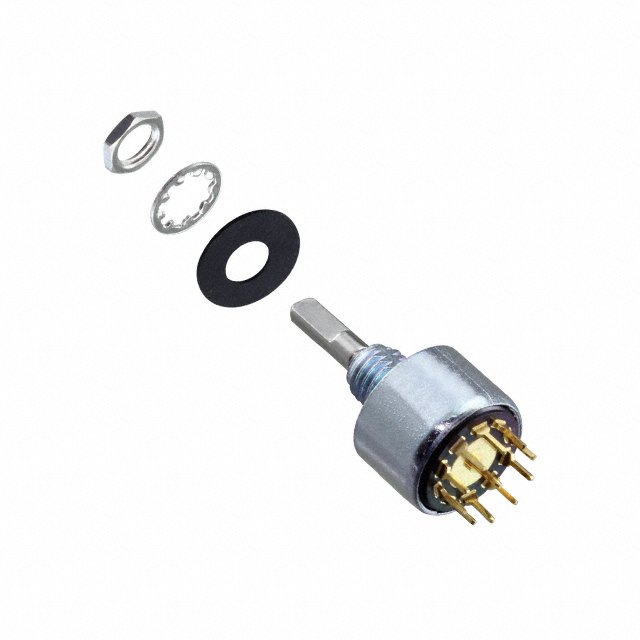

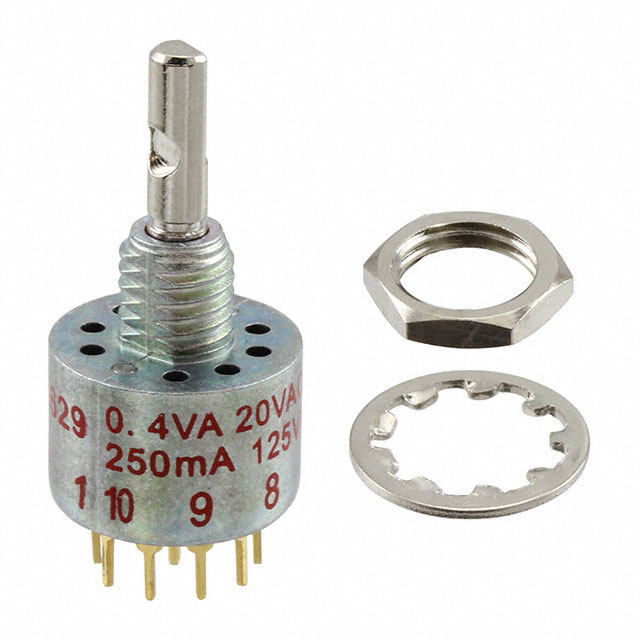

MA05L1NZGD
Rotary Switches
- Manufacturer No:
- MA05L1NZGD
- Manufacture:
- C&K
- Datasheet:
- MA05L1NZGD
- Description:
- SWITCH ROTARY 5POS 250MA 125V
In Stock
119 pcs On sales
$13.83
Product Parameter
- Series
- M
- Circuit per Deck
- SP5T
- Features
- -
- Contact Material
- Copper Alloy
- Index Stops
- Fixed
- Termination Style
- Solder Lug
- Part Status
- Active
- Depth Behind Panel
- 14.86mm
- Actuator Type
- Flatted (3.17mm Dia)
- Number of Positions
- 5
- Mounting Type
- Panel Mount
- Voltage Rating - AC
- 125V
- Angle of Throw
- 36°
- Voltage Rating - DC
- 28V
- Contact Finish
- Gold
- Current Rating (Amps)
- 250mA (AC/DC)
- Contact Timing
- Non-Shorting (BBM)
- Panel Cutout Dimensions
- Circular - 6.60mm Dia
- Actuator Length
- 10.16mm
- Number of Poles per Deck
- 1
- Number of Decks
- 1
- Operating Force
- 2.880 ~ 5.041gfm
