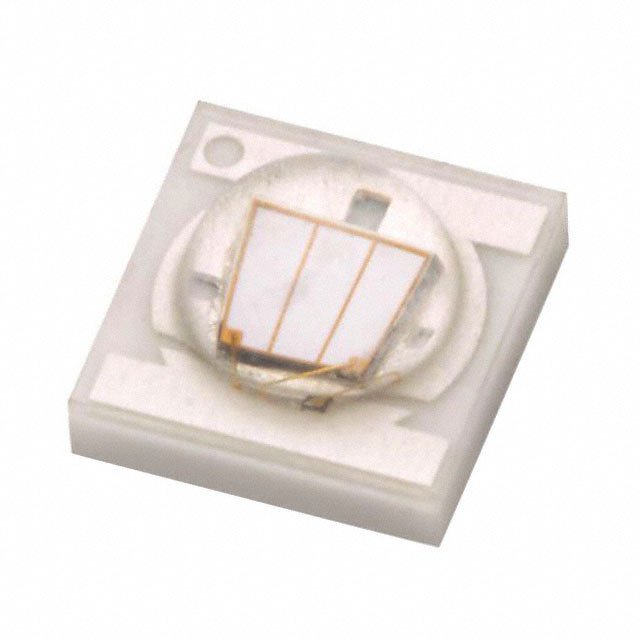

ASM3-SDD0-ANP0H
LED Lighting - Color
- Manufacturer No:
- ASM3-SDD0-ANP0H
- Manufacture:
- Broadcom Limited
- Package:
- 1414 (3535 Metric)
- Datasheet:
- ASM3-SDD0-ANP0H
- Description:
- LED RED 3W 3535 SURFACE MOUNT
In Stock
10000 pcs On sales
$3.26
Product Parameter
- Current - Max
- 700mA
- Flux @ Current/Temperature - Test
- 350mW (330mW ~ 430mW)
- Mounting Type
- Surface Mount
- Viewing Angle
- 130°
- Current - Test
- 350mA
- Package / Case
- 1414 (3535 Metric)
- Size / Dimension
- 0.136" L x 0.136" W (3.45mm x 3.45mm)
- Temperature - Test
- 25°C
- Color
- Deep Red
- Height - Seated (Max)
- 0.085" (2.15mm)
- Series
- Horticulture
- Supplier Device Package
- 3535
- Packaging
- Cut Tape (CT)
- Lumens/Watt @ Current - Test
- -
- Wavelength
- -
- Voltage - Forward (Vf) (Typ)
- 2.1V
- Part Status
- Active
- Thermal Resistance of Package
- 8°C/W
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
ASM3-SDD0-ANP0H Relevant information

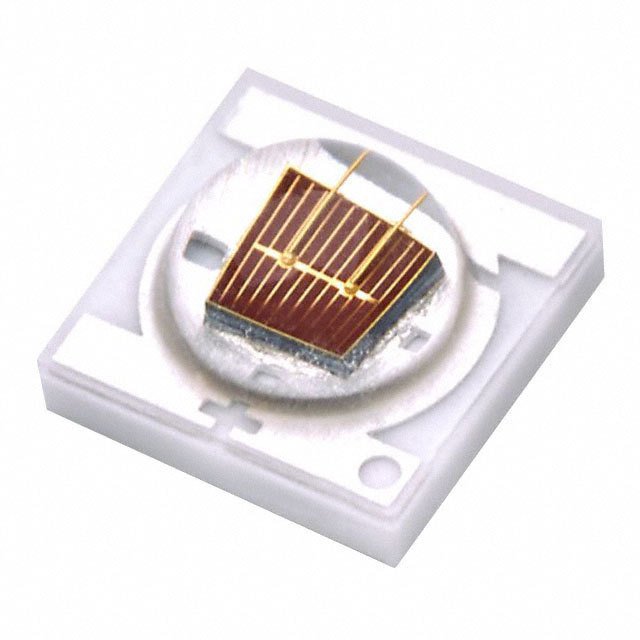

ASM3-S3D0-ALN0H
LED RED 3W 3535 SURFACE MOUNT
ASM3-SDD0-ANP0H
LED RED 3W 3535 SURFACE MOUNT
ASM3-SLD1-NST0H
LED BLUE 3W 3535 SURFACE MOUNT

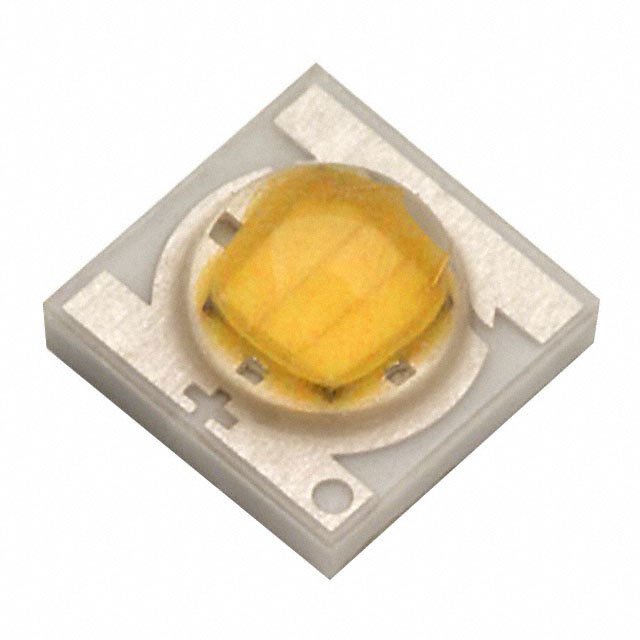

ASM3-SWD1-NPRHH
