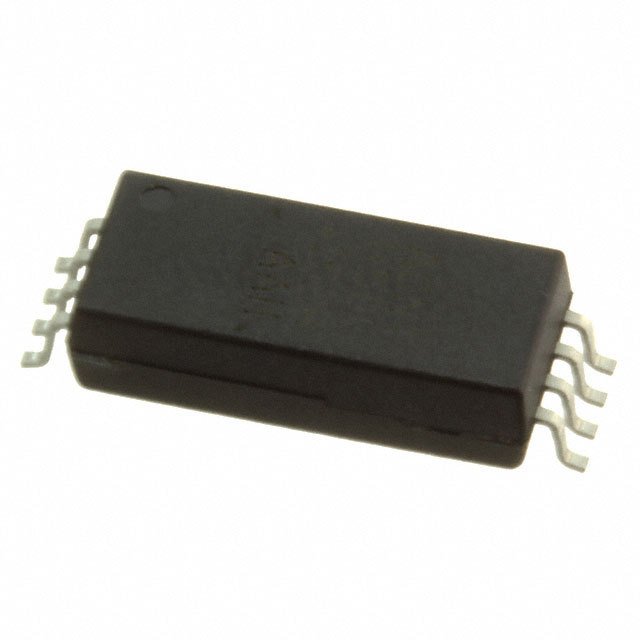

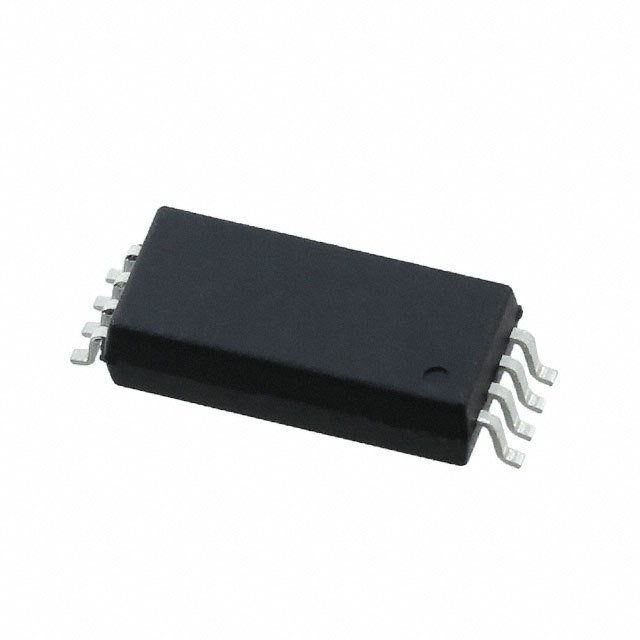

ACNT-H343-000E
Special Purpose
- Manufacturer No:
- ACNT-H343-000E
- Manufacture:
- Broadcom Limited
- Package:
- 8-SOIC (0.535", 13.60mm Width)
- Datasheet:
- ACNT-H343-000E
- Description:
- 5 AMP GATE DRIVE OPTOCOUPLER
In Stock
1036 pcs On sales
$6.69
Product Parameter
- Type
- Photocell Optocoupler
- Supplier Device Package
- 8-SSO
- Series
- -
- Current - Output / Channel
- 5A
- Approvals
- CSA, UL
- Voltage - Forward (Vf) (Typ)
- 1.5V
- Input Type
- DC
- Current - DC Forward (If) (Max)
- 25mA
- Part Status
- Active
- Propagation Delay tpLH / tpHL (Max)
- 150ns, 150ns
- Mounting Type
- Surface Mount
- Common Mode Transient Immunity (Min)
- 100kV/µs
- Package / Case
- 8-SOIC (0.535", 13.60mm Width)
- Voltage - Supply
- 15V ~ 30V
- Number of Channels
- 1
- Voltage - Isolation
- 7500Vrms
- Operating Temperature
- -40°C ~ 110°C
- Rise / Fall Time (Typ)
- 26ns, 7.5ns
