83A1A-B28-J15L

Rotary Potentiometers, Rheostats

Manufacturer No:
83A1A-B28-J15L
Manufacture:
Bourns, Inc.
Datasheet:
83A1A-B28-J15L
Description:
POT 10K OHM 1W WIREWOUND LINEAR

In Stock

120 pcs On sales

$40.88

Product Parameter

Taper
Linear
Adjustment Type
Side Adjustment
Series
83
Built in Switch
None
Rotation
3600°
Number of Gangs
1
Packaging
Tray
Number of Turns
10
Tolerance
±5%
Base Part Number
83A1A
Part Status
Active
Actuator Diameter
0.250" (6.35mm)
Size - Body
Square - 0.625" x 0.625" Face x 0.625" H (15.88mm x 15.88mm x 15.88mm)
Resistance (Ohms)
10k
Actuator Type
Slotted
Termination Style
PC Pins
Mounting Type
Panel Mount
Resistive Material
Wirewound
Power (Watts)
1W
Temperature Coefficient
±50ppm/°C
Bushing Thread
3/8-32
Actuator Length
0.875" (22.23mm)

Company Profile

Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.

83A1A-B28-J15L Relevant information

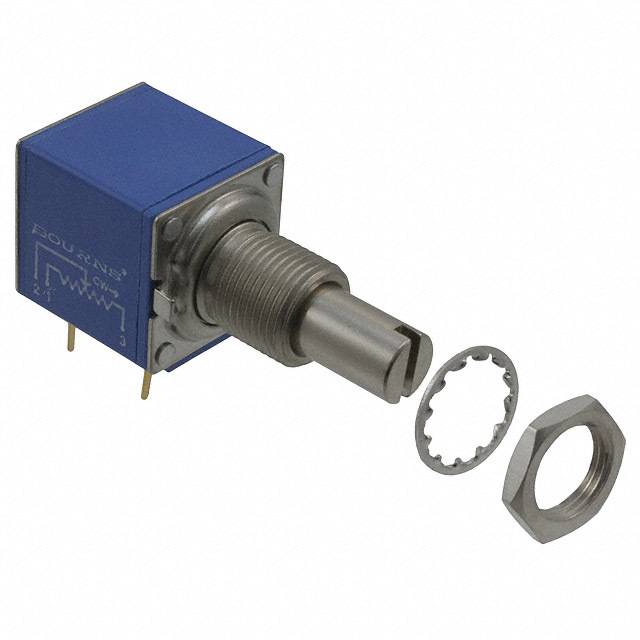

83A1A-B24-J15L
83A1A-B24-J15L

POT 10K OHM 1W WIREWOUND LINEAR

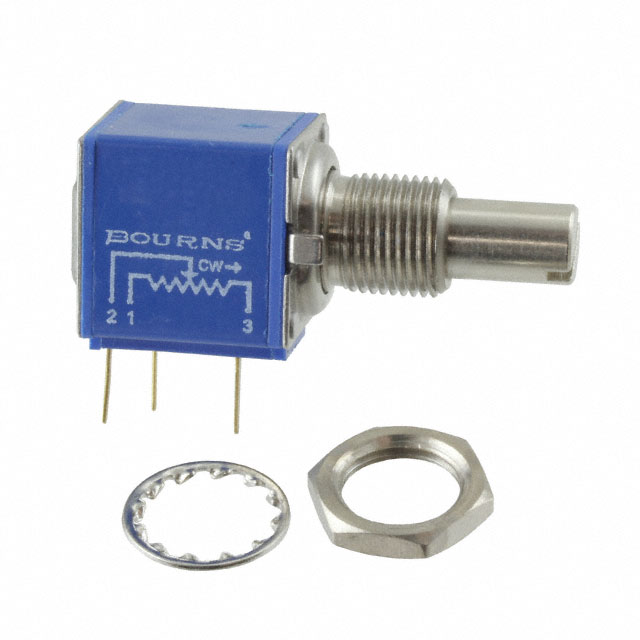

83A1A-B24-J18L
83A1A-B24-J18L

POT 50K OHM 1W WIREWOUND LINEAR

83A1A-B28-J10L
83A1A-B28-J10L

POT 1K OHM 1W WIREWOUND LINEAR

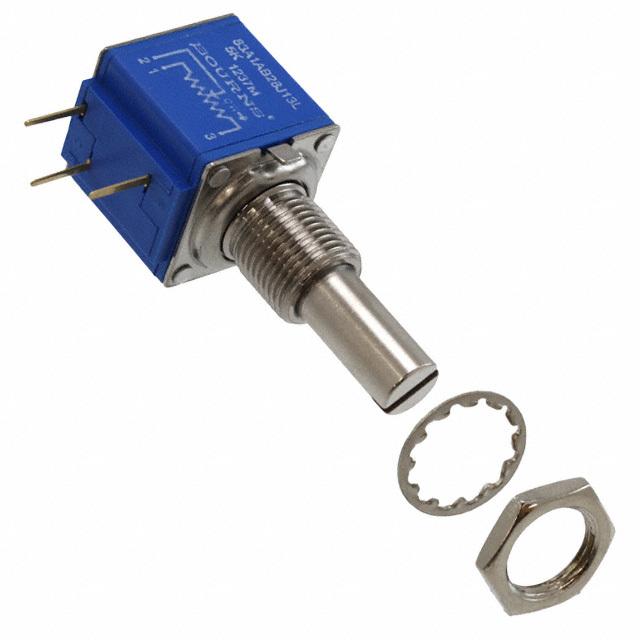

83A1A-B28-J13L
