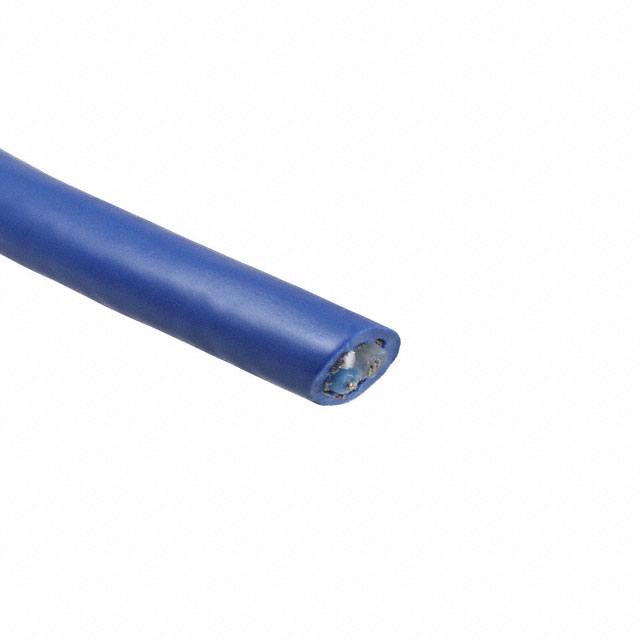

9463 J22U500
Coaxial Cables (RF)
- Manufacturer No:
- 9463 J22U500
- Manufacture:
- Belden Inc.
- Datasheet:
- 9463 J22U500
- Description:
- CABLE TWINAXIAL 20AWG 500'
In Stock
16 pcs On sales
$566.06
Product Parameter
- Cable Type
- Twinaxial - Plenum
- Operating Temperature
- -40°C ~ 80°C
- Wire Gauge
- 20 AWG
- Jacket (Insulation) Diameter
- 0.238" (6.05mm)
- Cable Group
- -
- Jacket (Insulation) Material
- Poly-Vinyl Chloride (PVC)
- Part Status
- Active
- VoP, Velocity of Propagation
- 66
- Shield Type
- Foil, Braid
- Jacket Color
- Blue
- Shield Coverage
- 100%, 55%
- Usage
- -
- Shield Material
- Aluminum; Copper, Tinned
- Length
- 500.0' (152.40m)
- Conductor Strand
- 7 Strands / 28 AWG
- Series
- Blue Hose®
- Conductor Material
- Copper, Tinned
- Features
- -
- Dielectric Diameter
- 0.078" (1.98mm)
- Impedance
- 78 Ohms
- Dielectric Material
- Polyethylene (PE)
