8312 060100
Multiple Conductor Cables
- Manufacturer No:
- 8312 060100
- Manufacture:
- Belden Inc.
- Datasheet:
- 8312 060100
- Description:
- MULTI-PAIR 25COND 22AWG 100'
In Stock
2 pcs On sales
$643.52
Product Parameter
- Shield Coverage
- 100%, 65%
- Shield Material
- Aluminum; Copper, Tinned
- Usage
- Computer
- Conductor Strand
- 7/30
- Length
- 100.0' (30.5m)
- Conductor Material
- Copper, Tinned
- Series
- -
- Conductor Insulation
- Poly-Vinyl Chloride (PVC)
- Ratings
- -
- Number of Conductors
- 25 (12.5 Pair Twisted)
- Features
- -
- Operating Temperature
- -30°C ~ 80°C
- Cable Type
- Multi-Pair
- Jacket (Insulation) Diameter
- 0.455" (11.56mm)
- Wire Gauge
- 22 AWG
- Jacket (Insulation) Material
- Poly-Vinyl Chloride (PVC)
- Part Status
- Active
- Jacket (Insulation) Thickness
- 0.0400" (1.016mm)
- Shield Type
- Foil, Braid
- Jacket Color
- Chrome
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
8312 060100 Relevant information
8312
SPACER MOUNTS LED T-1 3/4 .140"
8312 060100
MULTI-PAIR 25COND 22AWG 100'

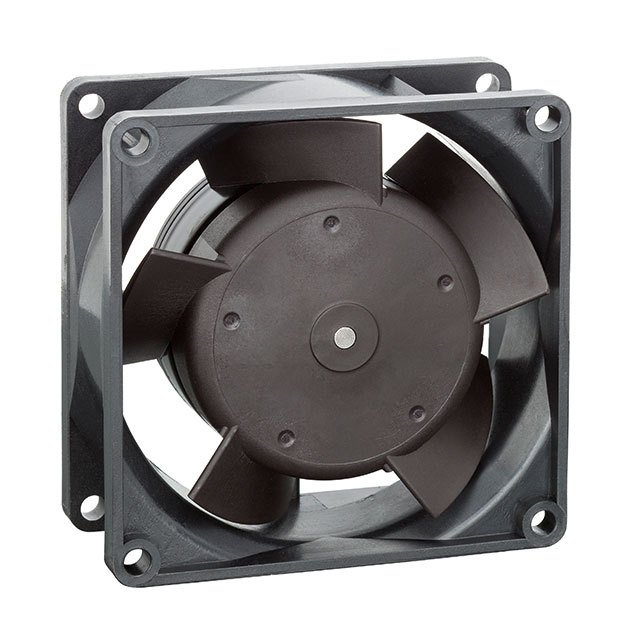

8312/10MV
FAN AXIAL 80X32MM 12VDC WIRE

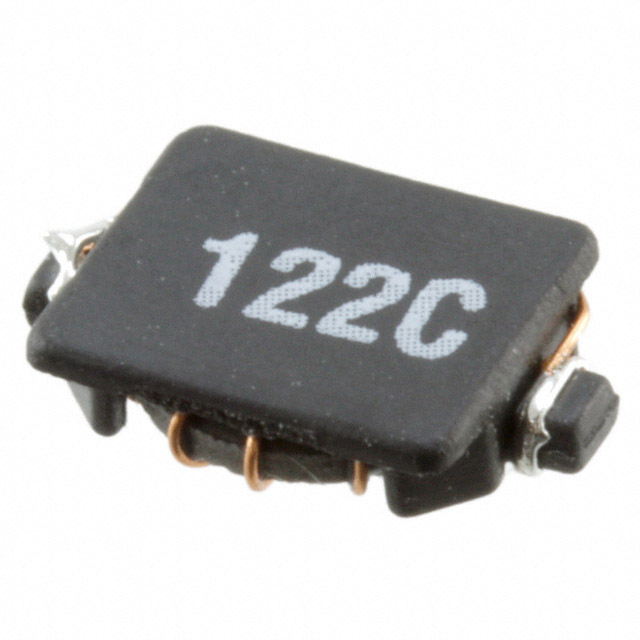

83122C
