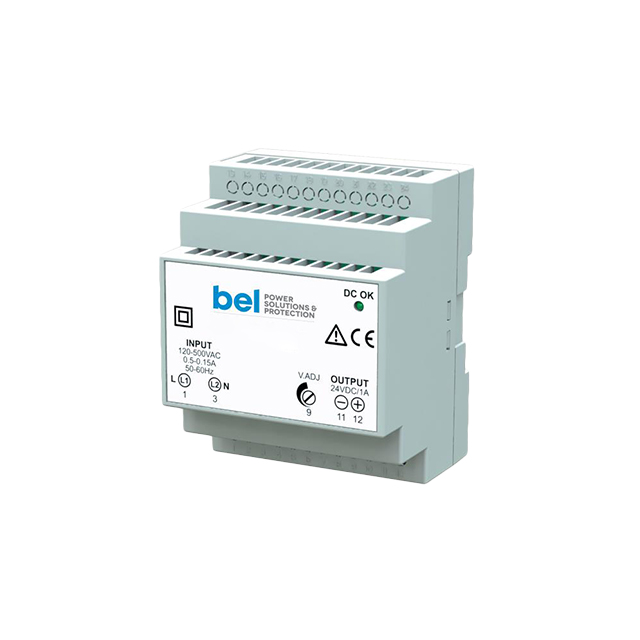

LDW240-24
AC DC Converters
- Manufacturer No:
- LDW240-24
- Manufacture:
- Bel Power Solutions
- Datasheet:
- LDW240-24
- Description:
- AC/DC CONVERTER 24V 240W
In Stock
21 pcs On sales
$157.11
Product Parameter
- Voltage - Input
- 187 ~ 550 VAC (1 ~ 3PH), 250 ~ 725 VDC
- Size / Dimension
- 4.33" L x 2.13" W x 4.53" H (110.0mm x 54.0mm x 115.0mm)
- Number of Outputs
- 1
- Type
- Enclosed
- Voltage - Output 1
- 24V
- Series
- LDW240 (240W)
- Voltage - Output 2
- -
- Features
- Adjustable Output, IP20
- Voltage - Output 3
- -
- Approvals
- -
- Voltage - Output 4
- -
- Efficiency
- 93%
- Voltage - Isolation
- 4.2kV
- Part Status
- Active
- Minimum Load Required
- -
- Applications
- ITE (Commercial)
- Operating Temperature
- -40°C ~ 70°C (With Derating)
- Mounting Type
- DIN Rail
- Current - Output (Max)
- 10A
- Power (Watts)
- 240W
