GP2540-9R
DC DC Converters
- Manufacturer No:
- GP2540-9R
- Manufacture:
- Bel Power Solutions
- Datasheet:
- GP2540-9R
- Description:
- DC/DC CONVERTER 2X15V 192W
In Stock
0 pcs On sales
$0
Product Parameter
- Part Status
- Active
- Voltage - Input (Min)
- 21.6V
- Applications
- ITE (Commercial), Railway
- Current - Output (Max)
- 6.4A, 6.4A
- Mounting Type
- Chassis Mount
- Power (Watts)
- 192W
- Size / Dimension
- 6.73" L x 4.37" W x 0.78" H (171.0mm x 111.0mm x 19.8mm)
- Number of Outputs
- 2
- Voltage - Output 1
- 15V
- Type
- Enclosed, Conformal Coated
- Voltage - Output 2
- 15V
- Series
- Melcher P (90 ~ 192W)
- Voltage - Output 3
- -
- Approvals
- CE, CSA, EN, IEC, TUV, UL
- Voltage - Output 4
- -
- Packaging
- -
- Operating Temperature
- -40°C ~ 71°C
- Efficiency
- 88.5%
- Voltage - Input (Max)
- 50.4V
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
GP2540-9R Relevant information
GP25
DC DC CONVERTER 2500V 1W
GP2540-9R
DC/DC CONVERTER 2X15V 192W
GP2540-9RG
DC/DC CONVERTER 2X15V 192W

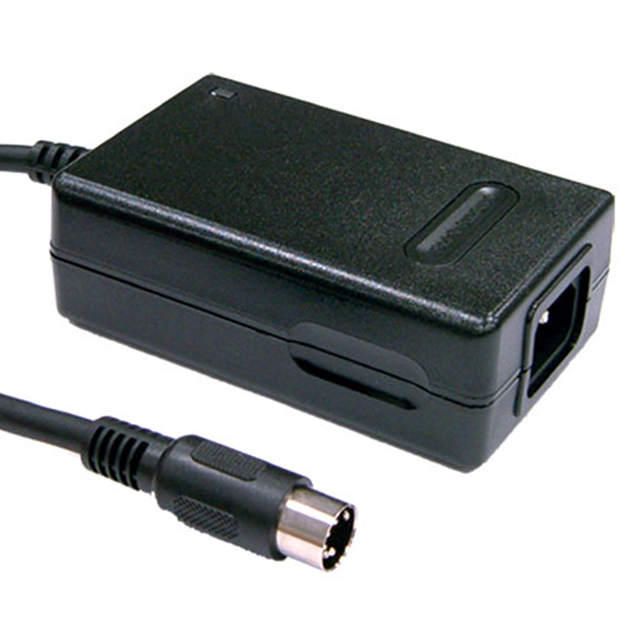

GP25A13A-R1B
