L826-1X1T-23-F
Modular Connectors - Jacks With Magnetics
- Manufacturer No:
- L826-1X1T-23-F
- Manufacture:
- Bel Fuse, Inc.
- Datasheet:
- L826-1X1T-23-F
- Description:
- CONN MAGJACK 1PORT 1000 BASE-T
In Stock
2341 pcs On sales
$6.91
Product Parameter
- Tab Direction
- Up
- Connector Type
- RJ45
- Series
- MagJack®
- Contact Finish
- Gold
- Features
- Board Guide
- Number of Rows
- 1
- LED Color
- Green, Orange - Yellow
- Number of Ports
- 1
- Packaging
- Tray
- Shield Material
- Copper Alloy
- Shielding
- Shielded, EMI Finger
- Contact Material
- Copper Alloy
- Orientation
- 90° Angle (Right)
- Height Above Board
- 0.489" (12.42mm)
- Part Status
- Active
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Termination
- Solder
- Operating Temperature
- 0°C ~ 70°C
- Applications
- 10/100/1000 Base-T, AutoMDIX
- Contact Finish Thickness
- 50.0µin (1.27µm)
- Mounting Type
- Through Hole
- Number of Cores per Jack
- 12
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
L826-1X1T-23-F Relevant information
L826-1M1T-23-F
CONN MAGJACK 1PORT 1000 BASE-T
L826-1X1T-23-F
CONN MAGJACK 1PORT 1000 BASE-T
L826-1X1T-43-F
CONN MAGJACK 1PORT 1000 BASE-T
L826-1X4T-23-F

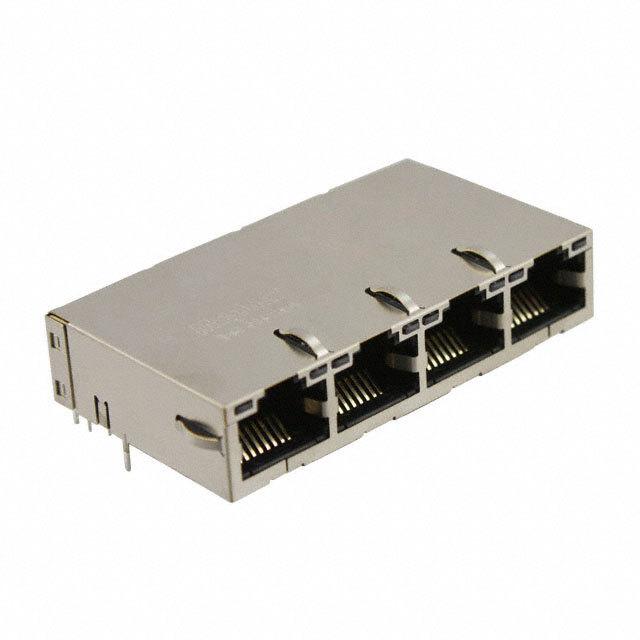

CONN MAGJACK 4PORT 1000 BASE-T
L826-1X4T-43-F

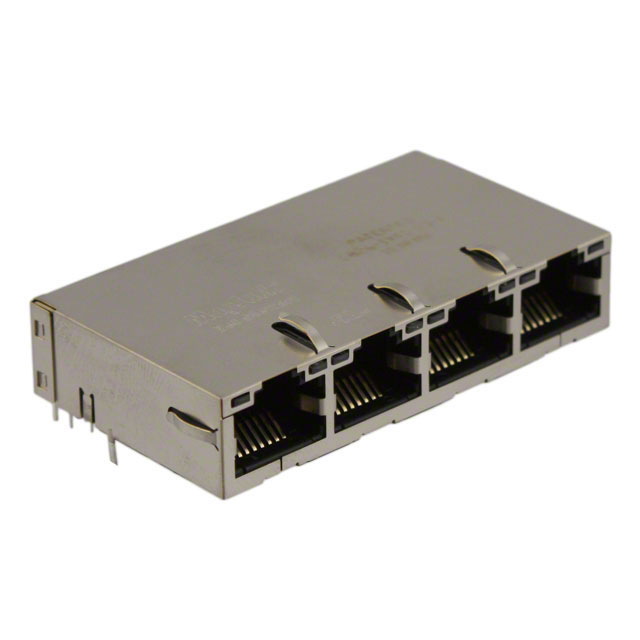

CONN MAGJACK 4PORT 1000 BASE-T
