0ZRE0008FF1C
PTC Resettable Fuses
- Manufacturer No:
- 0ZRE0008FF1C
- Manufacture:
- Bel Fuse, Inc.
- Package:
- Radial, Disc
- Datasheet:
- 0ZRE0008FF1C
- Description:
- PTC RESET FUSE 240V 80MA RADIAL
In Stock
8760 pcs On sales
$0.3
Product Parameter
- Time to Trip
- 15s
- Resistance - Post Trip (R1) (Max)
- 26 Ohms
- Current - Max
- 1.5A
- Mounting Type
- Through Hole
- Voltage - Max
- 240V
- Package / Case
- Radial, Disc
- Type
- Polymeric
- Thickness (Max)
- -
- Series
- 0ZRE
- Size / Dimension
- 0.327" L x 0.150" W (8.30mm x 3.80mm)
- Ratings
- -
- Current - Trip (It)
- 190mA
- Approvals
- cURus, TUV
- Height - Seated (Max)
- 0.421" (10.70mm)
- Packaging
- Bulk
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Active
- Current - Hold (Ih) (Max)
- 80mA
- Lead Spacing
- 0.201" (5.10mm)
- Resistance - Initial (Ri) (Min)
- 7.4 Ohms
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
0ZRE0008FF1C Relevant information

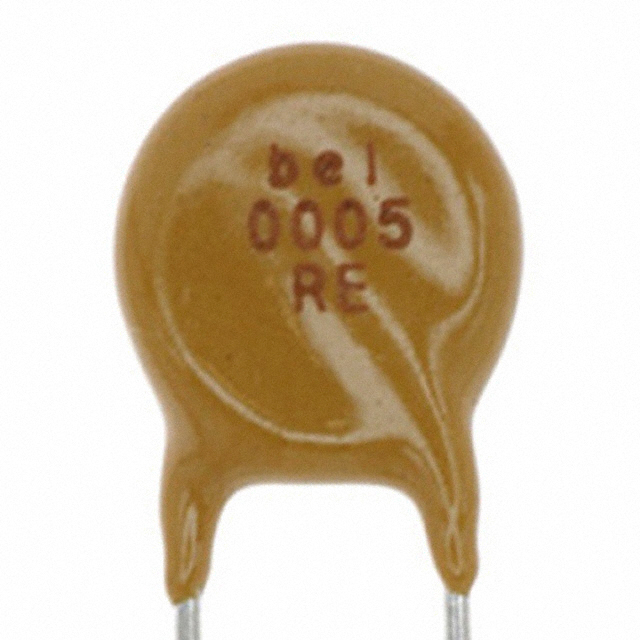

0ZRE0005FF1C
PTC RESET FUSE 240V 50MA RADIAL
0ZRE0005FF2C
PTC RESET FUSE 240V 50MA RADIAL
0ZRE0008FF1C
PTC RESET FUSE 240V 80MA RADIAL
0ZRE0008FF2C
PTC RESET FUSE 240V 80MA RADIAL

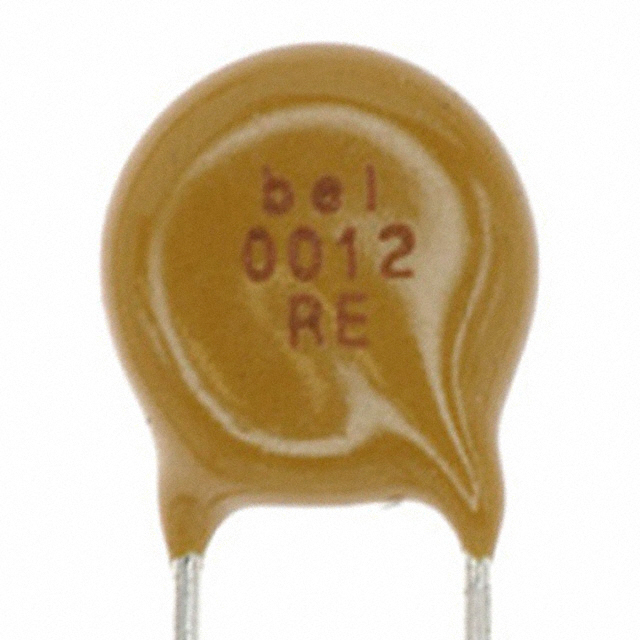

0ZRE0012FF1C
