0ZCC0014FF2C
PTC Resettable Fuses
- Manufacturer No:
- 0ZCC0014FF2C
- Manufacture:
- Bel Fuse, Inc.
- Package:
- 1812 (4532 Metric)
- Datasheet:
- 0ZCC0014FF2C
- Description:
- PTC RESET FUSE 60V 140MA 1812
In Stock
172670 pcs On sales
$0
Product Parameter
- Time to Trip
- 8ms
- Resistance - Post Trip (R1) (Max)
- 6.5 Ohms
- Current - Max
- 10A
- Mounting Type
- Surface Mount
- Voltage - Max
- 60V
- Package / Case
- 1812 (4532 Metric)
- Type
- Polymeric
- Thickness (Max)
- 0.035" (0.90mm)
- Series
- 0ZCC
- Size / Dimension
- 0.179" L x 0.128" W (4.55mm x 3.24mm)
- Ratings
- -
- Current - Trip (It)
- 300mA
- Approvals
- cURus, TUV
- Height - Seated (Max)
- -
- Packaging
- Digi-Reel®
- Operating Temperature
- -40°C ~ 85°C
- Part Status
- Obsolete
- Current - Hold (Ih) (Max)
- 140mA
- Lead Spacing
- -
- Resistance - Initial (Ri) (Min)
- 1.2 Ohms
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
0ZCC0014FF2C Relevant information
0ZCC0014FF2C
PTC RESET FUSE 60V 140MA 1812

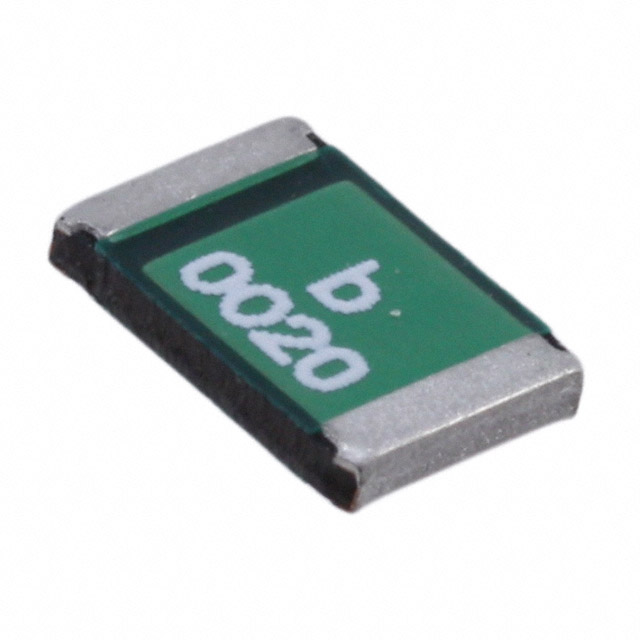

0ZCC0020FF2C
PTC RESET FUSE 30V 200MA 1812

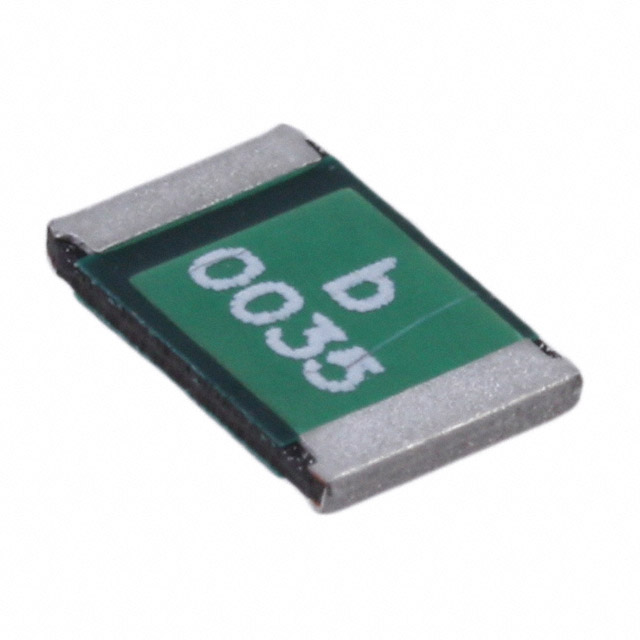

0ZCC0035FF2C
PTC RESET FUSE 16V 350MA 1812
0ZCC0050FF2C
PTC RESET FUSE 16V 500MA 1812

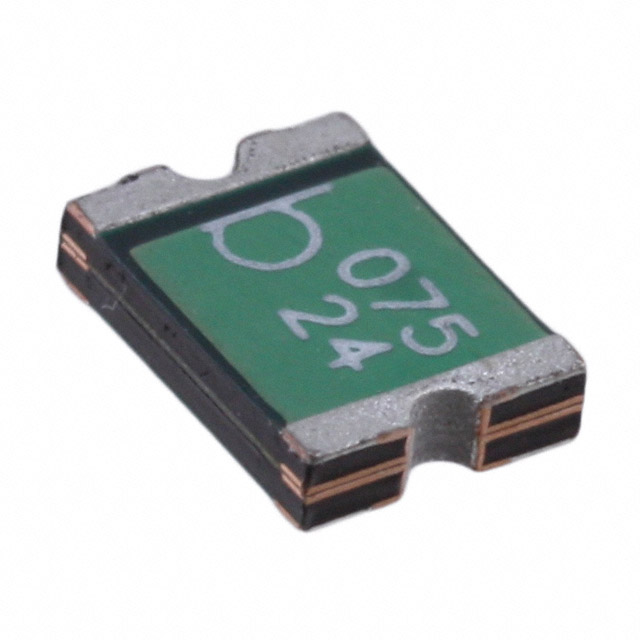

0ZCC0075AF2B
