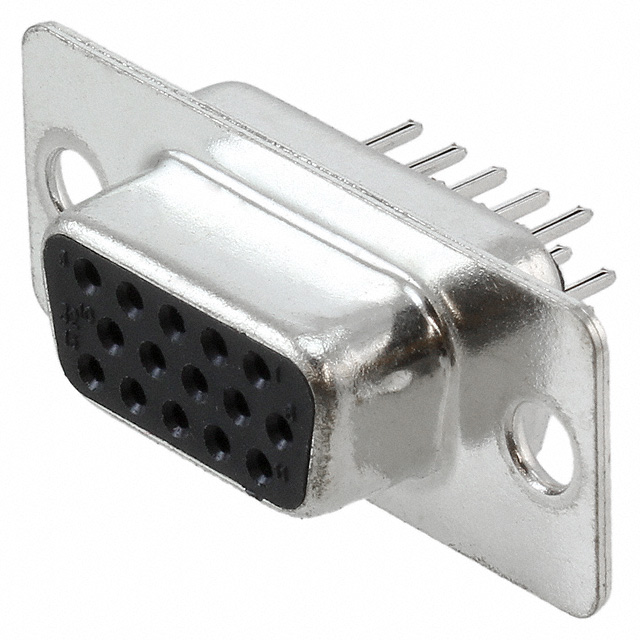

A-HDF 15 A-KG/T
D-Sub Connectors
- Manufacturer No:
- A-HDF 15 A-KG/T
- Manufacture:
- ASSMANN WSW Components
- Datasheet:
- A-HDF 15 A-KG/T
- Description:
- CONN DSUB HD RCPT 15POS R/A SLDR
In Stock
0 pcs On sales
$0.82
Product Parameter
- Contact Form
- -
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Type
- Signal
- Number of Positions
- 15
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Current Rating (Amps)
- 3A
- Connector Type
- Receptacle, Female Sockets
- Operating Temperature
- -55°C ~ 105°C
- Contact Finish
- Gold
- Shell Material, Finish
- Steel, Tin Plated
- Color
- Black
- Flange Feature
- Mating Side, Female Screwlock (4-40)
- Contact Finish Thickness
- Flash
- Series
- -
- Number of Rows
- 3
- Material Flammability Rating
- UL94 V-0
- Features
- Board Lock
- Voltage Rating
- 250V
- Shell Size, Connector Layout
- 1 (DE, E) High Density
- Packaging
- Tray
- Backset Spacing
- 0.350" (8.89mm)
- Wire Gauge
- -
- Connector Style
- D-Sub, High Density
- Part Status
- Active
- Contact Material
- Copper Alloy
- Termination
- Solder
- Ingress Protection
- -
