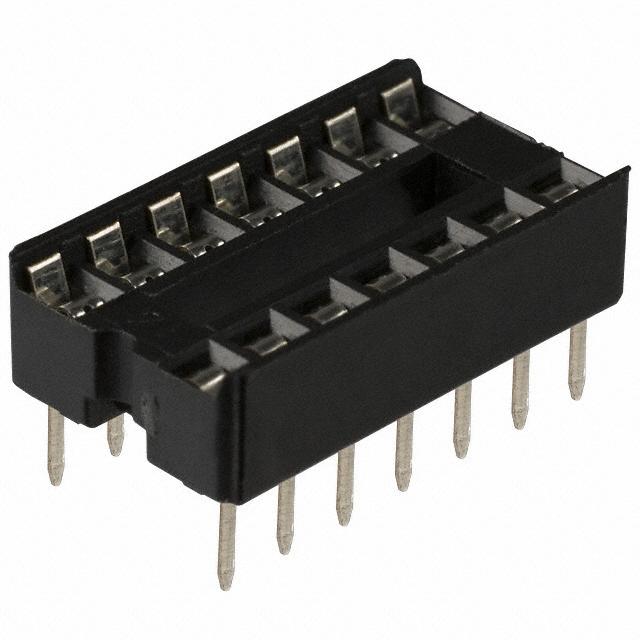

A 14-LC-TR
Sockets for ICs, Transistors
- Manufacturer No:
- A 14-LC-TR
- Manufacture:
- ASSMANN WSW Components
- Datasheet:
- A 14-LC-TR
- Description:
- CONN IC DIP SOCKET 14POS TIN
In Stock
4941 pcs On sales
$0.28
Product Parameter
- Mounting Type
- Through Hole
- Contact Finish Thickness - Post
- -
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish Thickness - Mating
- -
- Contact Resistance
- 30mOhm
- Number of Positions or Pins (Grid)
- 14 (2 x 7)
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Contact Finish - Post
- Tin
- Type
- DIP, 0.3" (7.62mm) Row Spacing
- Current Rating (Amps)
- 1A
- Series
- -
- Operating Temperature
- -55°C ~ 85°C
- Features
- Open Frame
- Contact Finish - Mating
- Tin
- Packaging
- Tube
- Contact Material - Post
- Phosphor Bronze
- Part Status
- Active
- Termination Post Length
- 0.124" (3.15mm)
- Termination
- Solder
- Contact Material - Mating
- Phosphor Bronze
- Pitch - Post
- 0.100" (2.54mm)
- Material Flammability Rating
- UL94 V-0
