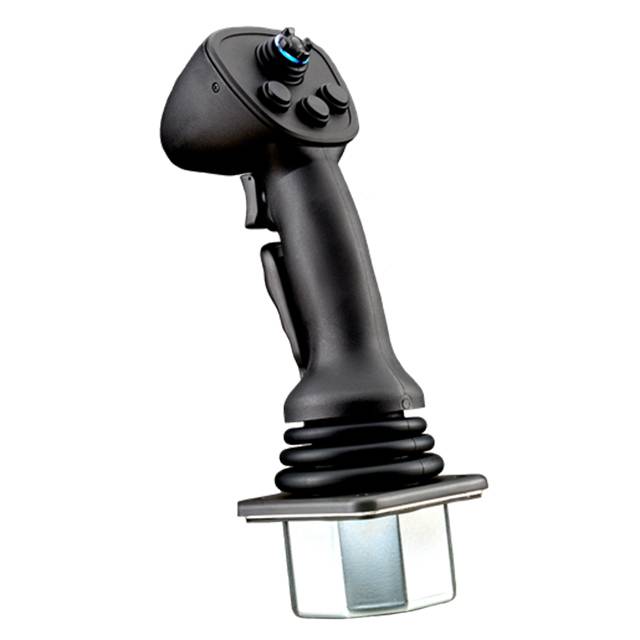

XDGTT2LNNCYYGAN
Navigation Switches, Joystick
- Manufacturer No:
- XDGTT2LNNCYYGAN
- Manufacture:
- APEM Inc.
- Datasheet:
- XDGTT2LNNCYYGAN
- Description:
- XD SERIES, SAE CANBUS J1939-71,
In Stock
23 pcs On sales
$1152.13
Product Parameter
- Mechanical Life
- 10,000,000 Cycles
- Operating Force
- 82gf
- Switch Function
- 4-Way Directional
- Type
- Joystick, 2 - Axis
- Contact Material
- -
- Output
- Digital (Hall Effect Over CANbus Interface)
- Functions, Extra
- 6 Pushbuttons, Deadman, Index Trigger
- Series
- XD
- Voltage - Supply
- 6 ~ 35VDC
- Features
- -
- Termination Style
- Connector
- Part Status
- Active
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Actuator Type
- Joystick
- Current Rating (Amps)
- -
- Mounting Type
- Panel Mount
- Operating Temperature
- -40°C ~ 85°C
- Contact Finish
- -
- Panel Cutout Dimensions
- Square - 66.29mm²
- Electrical Life
- -
