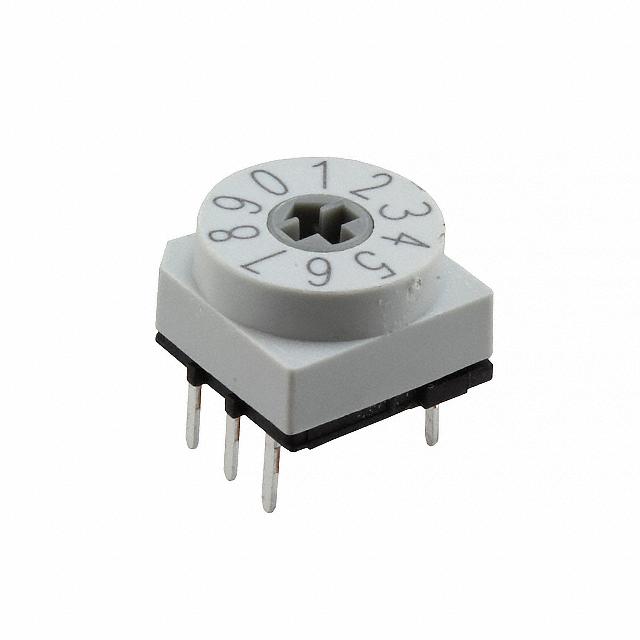

P65THR703
DIP Switches
- Manufacturer No:
- P65THR703
- Manufacture:
- APEM Inc.
- Datasheet:
- P65THR703
- Description:
- SWITCH ROTARY DIP HEX 200MA 50V
In Stock
0 pcs On sales
$5.43
Product Parameter
- Actuator Level
- Raised
- Pitch
- 0.100" (2.54mm), Full
- Contact Finish
- Gold
- Length
- 0.393" (10.00mm)
- Voltage Rating
- 50VDC
- Series
- P65
- Electrical Life
- -
- Circuit
- Hexadecimal
- Mechanical Life
- 30,000 Cycles
- Features
- -
- Contact Material
- Copper Alloy
- Washable
- Yes
- Termination Style
- PC Pin
- Packaging
- Tube
- Height Above Board
- 0.256" (6.50mm)
- Part Status
- Active
- Number of Positions
- 16
- Actuator Type
- Rotary for Tool
- Current Rating (Amps)
- 200mA
- Body Material
- Thermoplastic
- Operating Temperature
- -60°C ~ 125°C
- Mounting Type
- Through Hole
