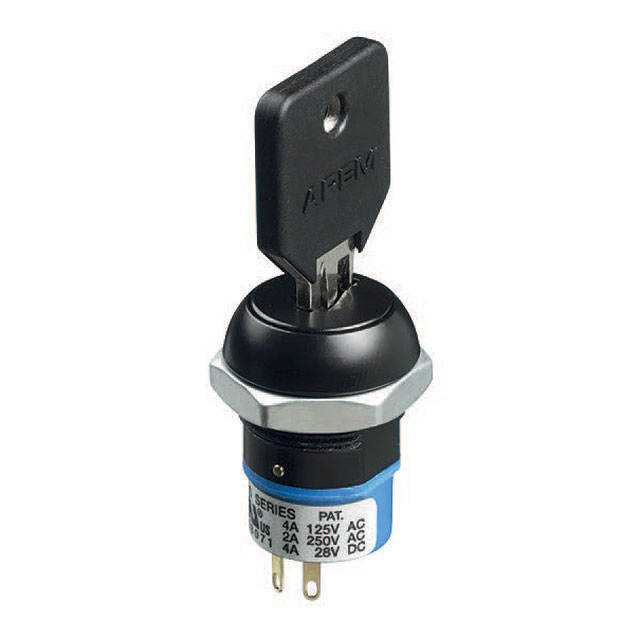

LK5ANB126N3
Keylock Switches
- Manufacturer No:
- LK5ANB126N3
- Manufacture:
- APEM Inc.
- Datasheet:
- LK5ANB126N3
- Description:
- SW KEYLOCK SPDT 4A 125V CHROME
In Stock
112 pcs On sales
$15.5
Product Parameter
- Angle of Throw
- 45°
- Current Rating (Amps)
- 4A (AC/DC)
- Contact Finish
- Gold
- Operating Temperature
- -30°C ~ 85°C
- Contact Timing
- Not Specified
- Key Removable Positions
- 1 only
- Electrical Life
- 6,000 Cycles
- Panel Cutout Dimensions
- Circular - 19.00mm Dia
- Mechanical Life
- 6,000 Cycles
- Switch Function
- On-Mom
- Series
- LK
- Contact Material
- Copper Alloy
- Circuit
- SPDT
- Termination Style
- Solder Lug
- Features
- -
- Depth Behind Flange
- 32.55mm
- Part Status
- Active
- Number of Positions
- 2
- Actuator Type
- Flat Key
- Voltage Rating - AC
- 125V
- Mounting Type
- Panel Mount
- Voltage Rating - DC
- 28V
