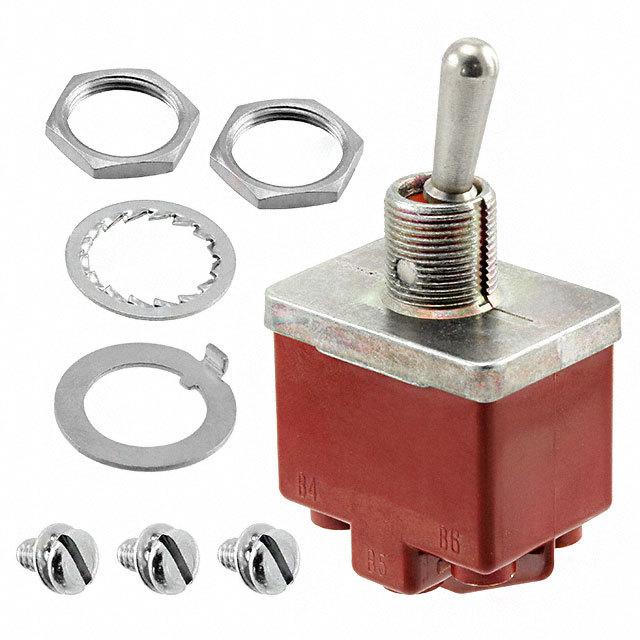

CT41021N000
Toggle Switches
- Manufacturer No:
- CT41021N000
- Manufacture:
- APEM Inc.
- Datasheet:
- CT41021N000
- Description:
- SWITCH TOGGLE DPST 10A 125V
In Stock
21 pcs On sales
$24.88
Product Parameter
- Features
- Sealed - Fully
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Packaging
- Bulk
- Voltage Rating - AC
- 125V
- Part Status
- Active
- Voltage Rating - DC
- 28V
- Illumination
- Non-Illuminated
- Current Rating (Amps)
- 10A (AC), 15A (DC)
- Actuator Type
- Standard Round
- Operating Temperature
- -40°C ~ 85°C
- Mounting Type
- Panel Mount
- Panel Cutout Dimensions
- Circular - 12.20mm Dia
- Bushing Thread
- 15/32-32
- Illumination Type, Color
- -
- Actuator Length
- 17.50mm
- Illumination Voltage (Nominal)
- -
- Electrical Life
- 10,000 Cycles
- Switch Function
- On-Off
- Series
- CT
- Actuator Material
- Nickel Plated
- Circuit
- DPST
- Termination Style
- Solder, Quick Connect - 0.250" (6.3mm)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
CT41021N000 Relevant information
CT4100

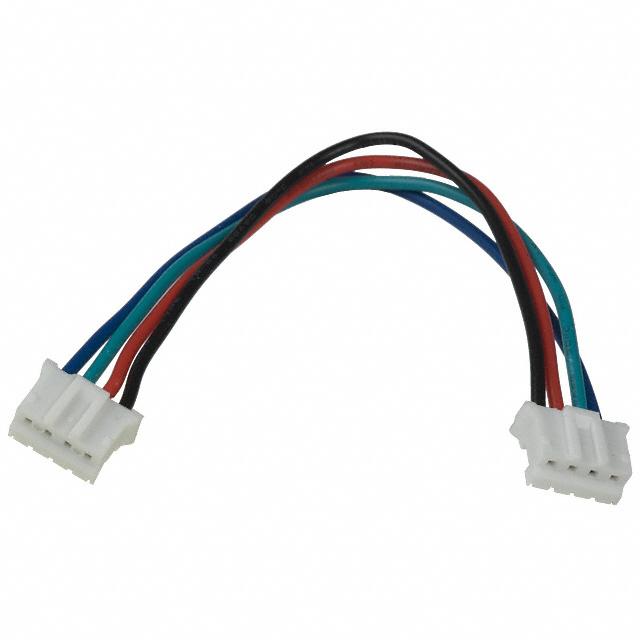

LINKING CABLE 4WAY PLUG 100MM
