4021-00065
Coaxial Connectors (RF)
- Manufacturer No:
- 4021-00065
- Manufacture:
- Amphenol SV Microwave
- Datasheet:
- 4021-00065
- Description:

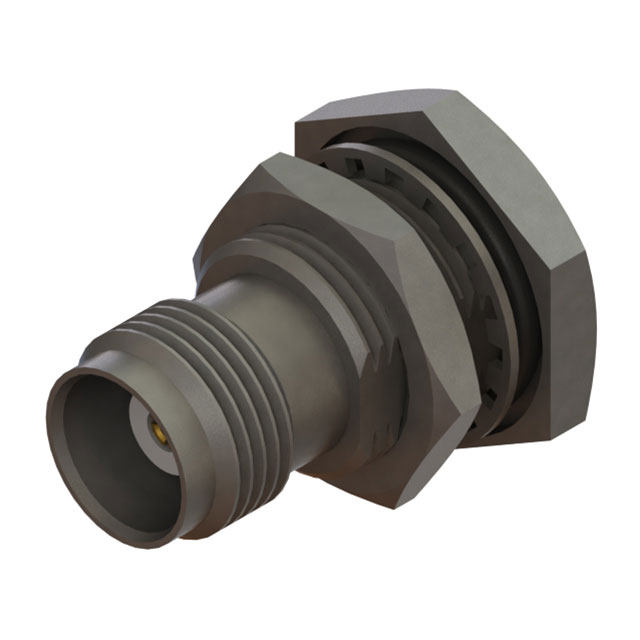

- CONN TNC JACK STR 50OHM SOLDER
In Stock
0 pcs On sales
$43.5
Product Parameter
- Part Status
- Active
- Ingress Protection
- -
- Body Material
- Brass
- Shield Termination
- Solder
- Housing Color
- Silver
- Contact Termination
- Solder
- Mating Cycles
- 500
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Mounting Type
- Panel Mount
- Operating Temperature
- -45°C ~ 120°C
- Series
- -
- Connector Type
- Jack, Female Socket
- Center Contact Plating
- Gold
- Features
- -
- Fastening Type
- Threaded
- Center Contact Material
- Beryllium Copper
- Includes
- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Insertion Loss
- -
- Impedance
- 50Ohm
- Connector Style
- TNC
- Packaging
- Bag
- Frequency - Max
- 11GHz
- Body Finish
- Tri-Alloy
- Number of Ports
- 1
- Cable Group
- RG-402 (.141" Semi Rigid)
- Mounting Feature
- Bulkhead - Front Side Nut
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
4021-00065 Relevant information
4021

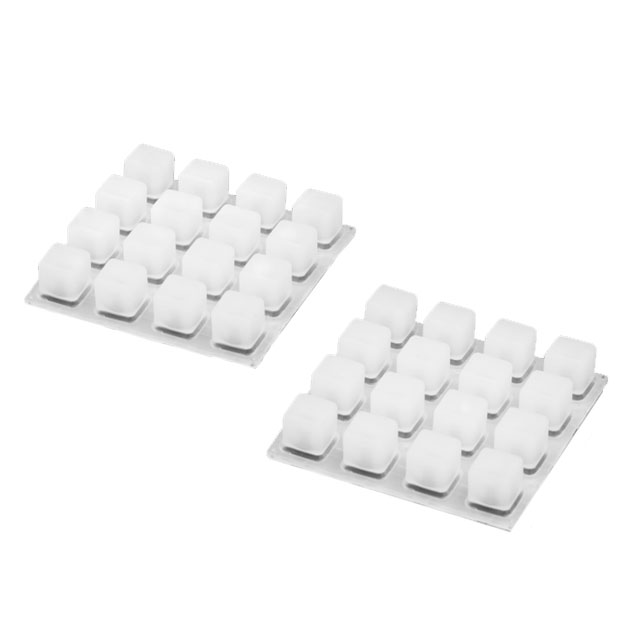

SILICONE ELASTOMER 4X4 BUTTON KE
