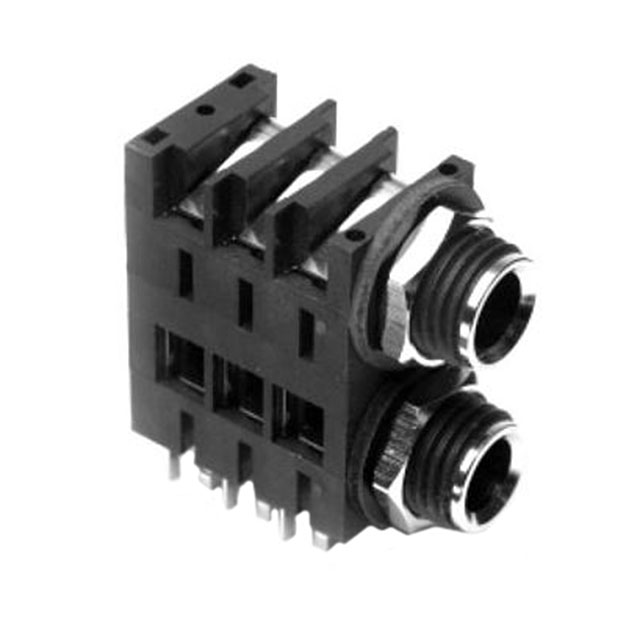

ACJS-MHDR
Barrel - Audio Connectors
- Manufacturer No:
- ACJS-MHDR
- Manufacture:
- Amphenol Sine Systems Corp
- Datasheet:
- ACJS-MHDR
- Description:
- CONN JACK STEREO 1/4" R/A
In Stock
828 pcs On sales
$1.42
Product Parameter
- Features
- -
- Connector Type
- Phone Jack
- Industry Recognized Mating Diameter
- 6.35mm (0.250", 1/4") - Headphone
- Includes
- -
- Actual Diameter
- -
- Packaging
- Bulk
- Panel Hole Size
- 0.449" (11.40mm)
- Shielding
- -
- Voltage - Rated
- -
- Body Color
- Black
- Contact Material
- Copper
- Part Status
- Active
- Insulation Color
- -
- Termination
- Kinked Pin
- Internal Switch(s)
- Three Switches
- Thread Size
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Signal Lines
- Stereo (3 Conductor, TRS)
- Mating Length/Depth
- -
- Body Material
- -
- Operating Temperature
- -25°C ~ 70°C
- Gender
- Female
- Cable Opening
- -
- Contact Material - Plating
- -
- Series
- Z
- Mounting Type
- Through Hole, Right Angle
- Number of Positions/Contacts
- 3 Conductors, 6 Contacts
