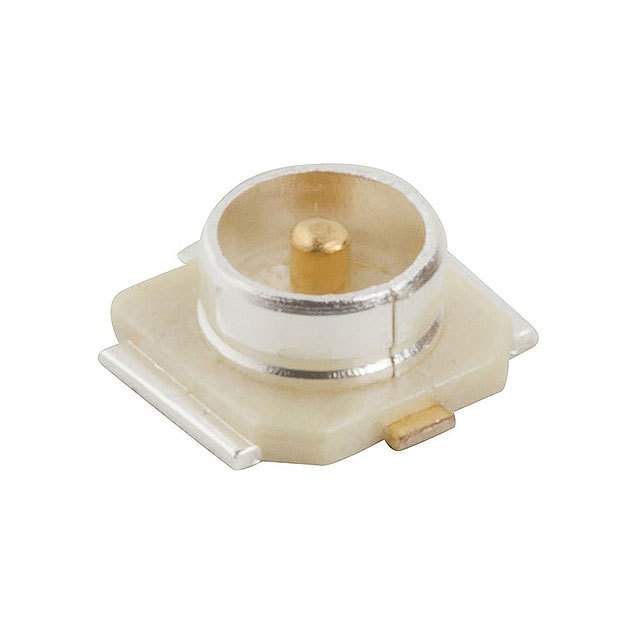

A-1JB-100
Coaxial Connectors (RF)
- Manufacturer No:
- A-1JB-100
- Manufacture:
- Amphenol RF Division
- Datasheet:
- A-1JB-100
- Description:
- CONN UMC JACK STR 50 OHM SMD
In Stock
0 pcs On sales
$0
Product Parameter
- Mating Cycles
- 30
- Contact Termination
- Solder
- Mounting Type
- Surface Mount
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Series
- AMC
- Connector Type
- Jack, Male Pin
- Operating Temperature
- -40°C ~ 90°C
- Features
- -
- Fastening Type
- Snap-On
- Center Contact Plating
- Gold
- Includes
- -
- Insertion Loss
- -
- Center Contact Material
- Brass
- Impedance
- 50Ohm
- Voltage Rating
- 500V
- Packaging
- Digi-Reel®
- Connector Style
- U.FL (UMCC), AMC
- Body Finish
- -
- Frequency - Max
- 6GHz
- Cable Group
- -
- Number of Ports
- 1
- Part Status
- Obsolete
- Mounting Feature
- -
- Body Material
- -
- Ingress Protection
- -
- Housing Color
- White
- Shield Termination
- Solder
