68175-1003
Coaxial Connectors (RF)
- Manufacturer No:
- 68175-1003
- Manufacture:
- Amphenol RF Division
- Datasheet:
- 68175-1003
- Description:

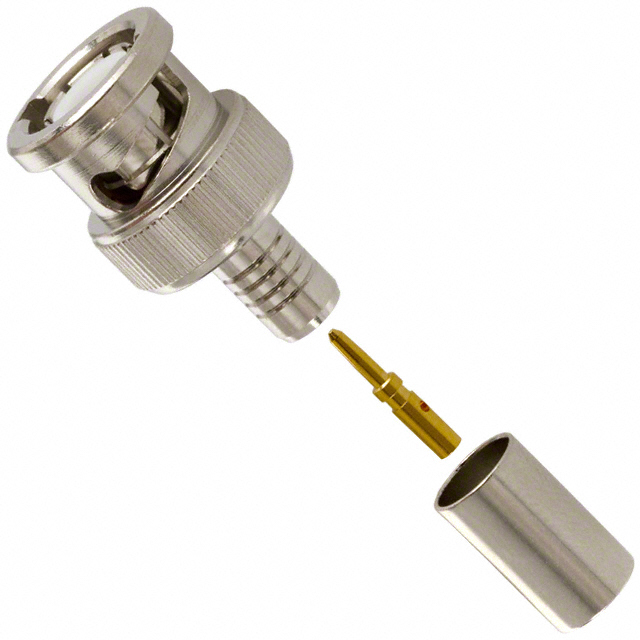

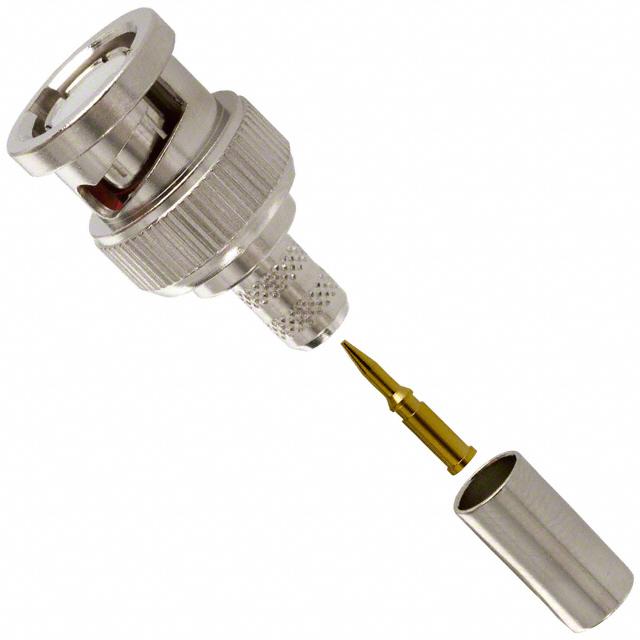

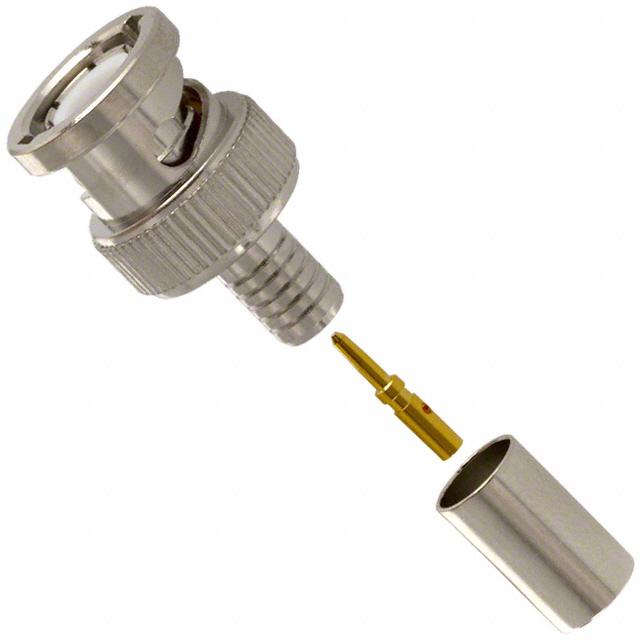

- CONN BNC PLUG STR 50 OHM CRIMP
In Stock
0 pcs On sales
$6.97
Product Parameter
- Mating Cycles
- 500
- Contact Termination
- Crimp or Solder
- Mounting Type
- Free Hanging (In-Line)
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Series
- -
- Connector Type
- Plug, Male Pin
- Operating Temperature
- -65°C ~ 165°C
- Features
- -
- Fastening Type
- Bayonet Lock
- Center Contact Plating
- Gold
- Includes
- 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
- Insertion Loss
- 0.2dB
- Center Contact Material
- Brass
- Impedance
- 50Ohm
- Voltage Rating
- 500V
- Packaging
- Bulk
- Connector Style
- BNC
- Body Finish
- Nickel
- Frequency - Max
- 2GHz
- Cable Group
- RG-59 Plenum, Belden 1560A, 82259, 88241, 89259, 9259
- Number of Ports
- 1
- Part Status
- Active
- Mounting Feature
- -
- Body Material
- Brass
- Ingress Protection
- -
- Housing Color
- Silver
- Shield Termination
- Crimp
