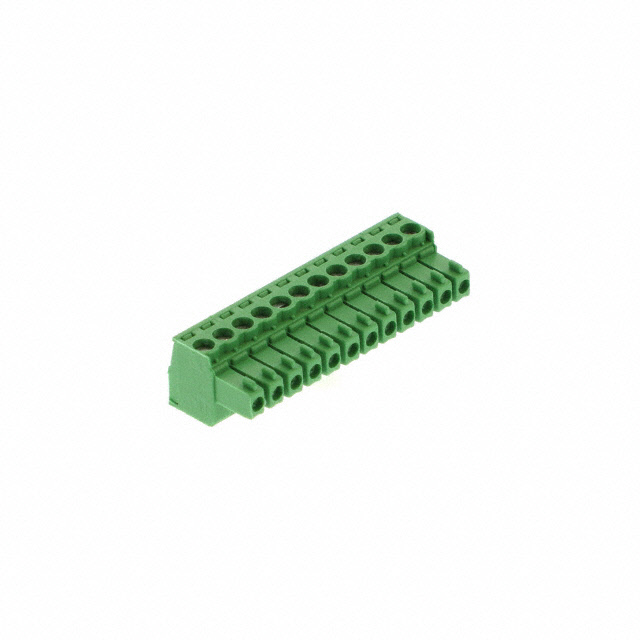

SH12-5,00
Terminal Blocks - Headers, Plugs and Sockets
- Manufacturer No:
- SH12-5,00
- Manufacture:
- Altech Corporation
- Datasheet:
- SH12-5,00
- Description:
- TERM BLOCK PLUG 12POS 5MM
In Stock
100 pcs On sales
$6.35
Product Parameter
- Screw Size
- M3
- Termination Style
- Screw - Rising Cage Clamp
- Material Flammability Rating
- UL94 V-0
- Part Status
- Active
- Wire Strip Length
- 7.5mm
- Current - UL
- 12A
- Header Orientation
- -
- Voltage - UL
- 300V
- Ingress Protection
- -
- Current - IEC
- 16A
- Contact Tail Length
- -
- Mounting Type
- Free Hanging (In-Line)
- Dielectric Material
- Polyamide (PA), Nylon
- Type
- Plug, Female Sockets
- Voltage - IEC
- 450V
- Number of Positions
- 12
- Color
- Green
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Positions Per Level
- 12
- Pitch
- 0.197" (5.00mm)
- Plug Wire Entry
- 180°
- Contact Mating Finish
- Nickel
- Series
- -
- Contact Material
- Brass
- Operating Temperature
- -
- Features
- Retention Latches (Non-Wire Side)
- Number of Levels
- 1
- Wire Gauge or Range - AWG
- 14-30 AWG
- Packaging
- Bulk
- Insulation Height
- 0.610" (15.49mm)
- Wire Gauge or Range - mm²
- 2.5mm²
