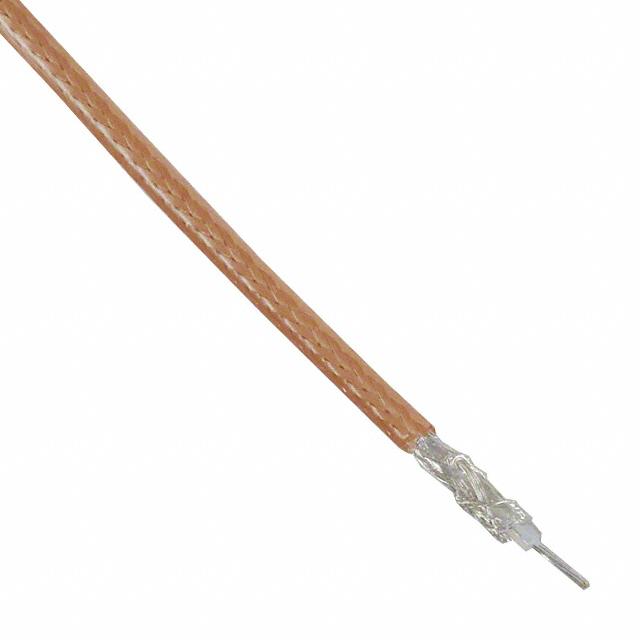

9316 BR005
Coaxial Cables (RF)
- Manufacturer No:
- 9316 BR005
- Manufacture:
- Alpha Wire
- Datasheet:
- 9316 BR005
- Description:
- CABLE COAXIAL RG316 25AWG 100'
In Stock
65 pcs On sales
$215.67
Product Parameter
- Length
- 100.0' (30.48m)
- Conductor Strand
- 7 Strands / 0.0067"
- Series
- -
- Conductor Material
- Steel, Copper Covered, Silver Coated
- Features
- -
- Dielectric Diameter
- 0.060" (1.52mm)
- Impedance
- 50 Ohms
- Dielectric Material
- Tetrafluoroethylene (TFE)
- Cable Type
- Coaxial
- Operating Temperature
- -
- Wire Gauge
- 25 AWG
- Jacket (Insulation) Diameter
- 0.098" (2.48mm)
- Cable Group
- RG-316
- Jacket (Insulation) Material
- Fluorinated Ethylene-Propylene (FEP)
- Part Status
- Active
- VoP, Velocity of Propagation
- 70
- Shield Type
- Braid
- Jacket Color
- Brown
- Shield Coverage
- 93%
- Usage
- -
- Shield Material
- Copper, Silver Coated
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
9316 BR005 Relevant information
9316
MACH SCREW PAN HEAD SLOTTED 8-32
9316 060U500
CABLE 2COND 16AWG CHROME 500'
9316 BR001
CABLE COAXIAL RG316 25AWG 1000'
9316 BR002
CABLE COAXIAL RG316 25AWG 500'
9316 BR005
CABLE COAXIAL RG316 25AWG 100'

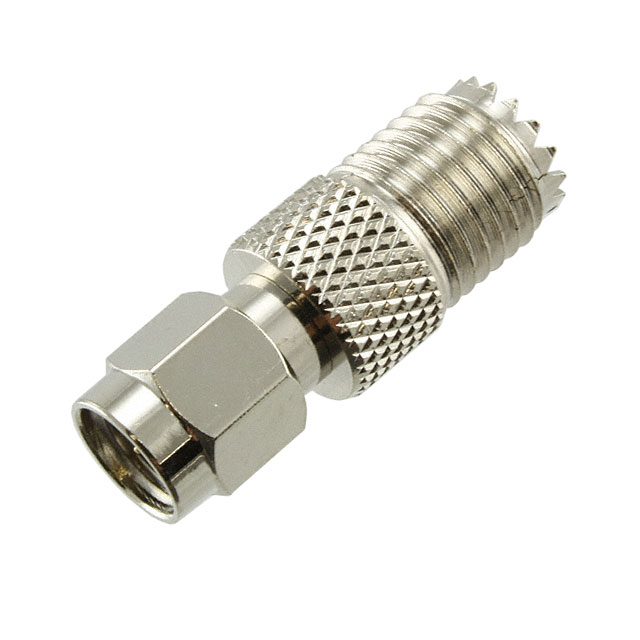

9316505
