25276 BK005
Multiple Conductor Cables
- Manufacturer No:
- 25276 BK005
- Manufacture:
- Alpha Wire
- Datasheet:
- 25276 BK005
- Description:
- MULTI-PAIR 12C 24AWG BLK 100'
In Stock
19 pcs On sales
$577.09
Product Parameter
- Length
- 100.0' (30.5m)
- Conductor Strand
- 7/32
- Series
- Xtra-Guard® 2
- Conductor Material
- Copper, Tinned
- Ratings
- ISO 10993, UL Style 20668
- Conductor Insulation
- Poly-Vinyl Chloride (PVC)
- Voltage
- 300V
- Number of Conductors
- 12 (6 Pair Twisted)
- Features
- Biological Compatibility, Drain Wire, Rip Cord
- Operating Temperature
- -30°C ~ 90°C
- Cable Type
- Multi-Pair
- Jacket (Insulation) Diameter
- 0.314" (7.98mm)
- Wire Gauge
- 24 AWG
- Jacket (Insulation) Material
- Polyurethane (PU)
- Part Status
- Active
- Jacket (Insulation) Thickness
- 0.0320" (0.813mm)
- Shield Type
- Foil, Braid
- Jacket Color
- Black
- Shield Coverage
- 100%, 70%
- Usage
- -
- Shield Material
- Suprashield®; Copper, Tinned
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
25276 BK005 Relevant information

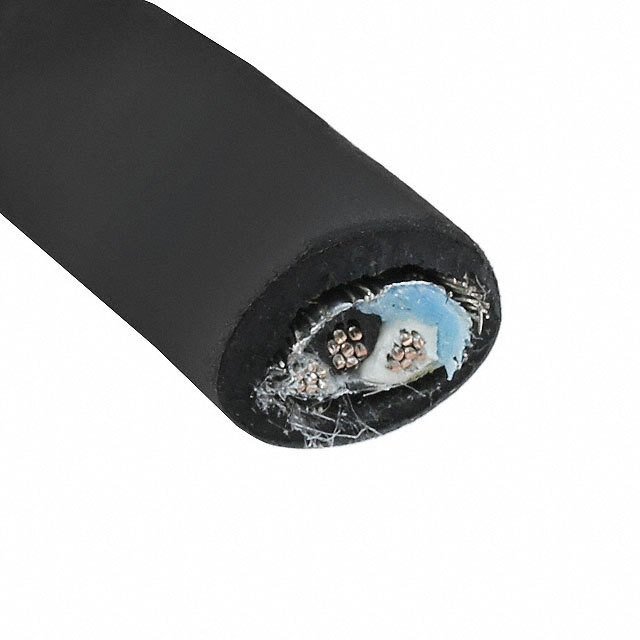

25271 BK005
CABLE 2COND 24AWG BLK SHLD 100'

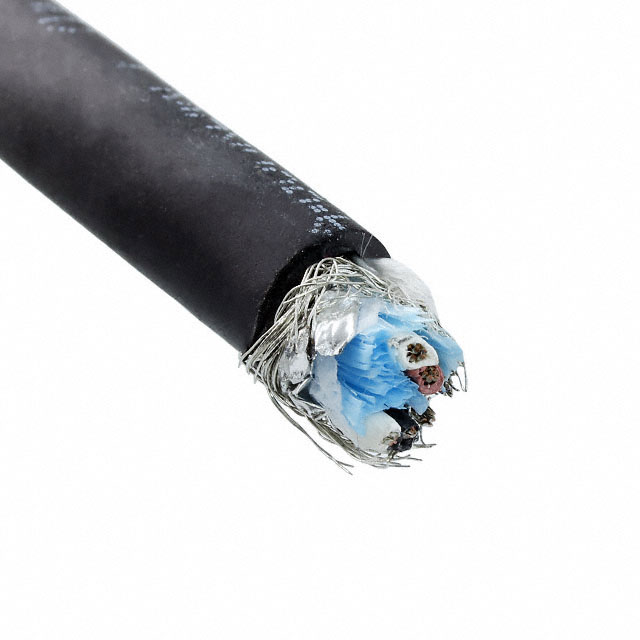

25272 BK005
MULTI-PAIR 4COND 24AWG BLK 100'

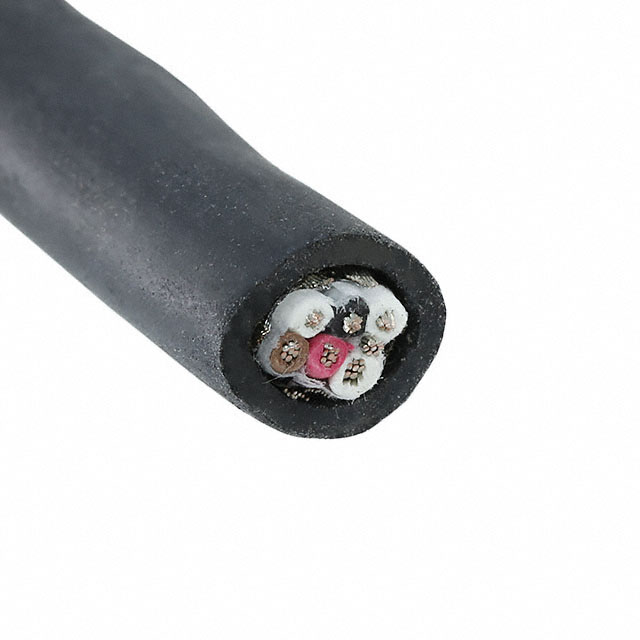

25273 BK005
MULTI-PAIR 6COND 24AWG BLK 100'

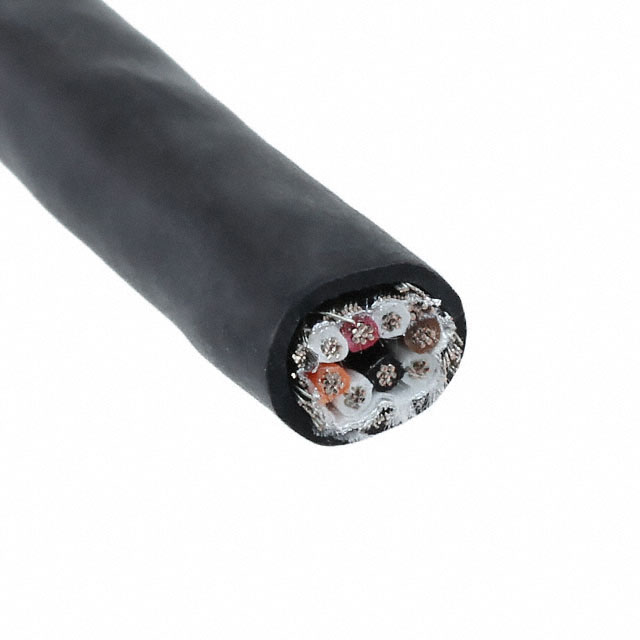

25274 BK005
