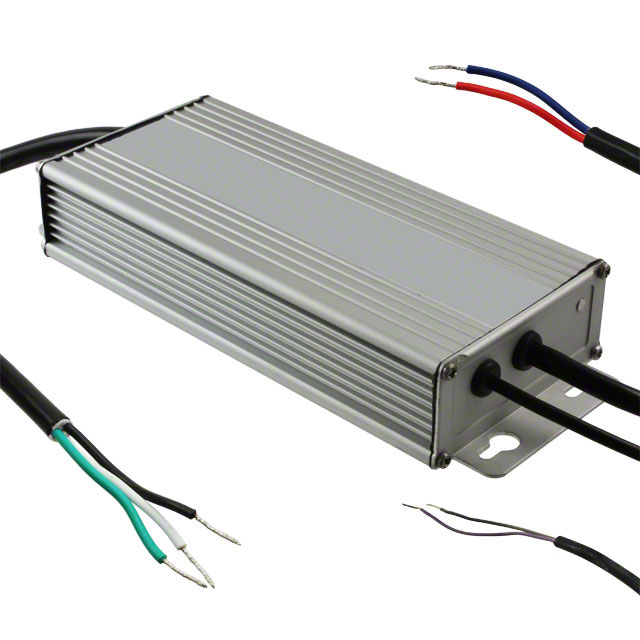

LXD75-0450SW
LED Drivers
- Manufacturer No:
- LXD75-0450SW
- Manufacture:
- Advanced Energy
- Datasheet:
- LXD75-0450SW
- Description:
- LED DRIVER CC AC/DC 83-166V
In Stock
7 pcs On sales
$62.19
Product Parameter
- Approvals
- CE, cULus, EN
- Voltage - Input (Min)
- 90VAC
- Efficiency
- 92%
- Current - Output (Max)
- 450mA
- Part Status
- Active
- Mounting Type
- Chassis Mount
- Power (Watts)
- 75W
- Type
- Constant Current
- Size / Dimension
- 6.97" L x 2.66" W x 1.46" H (177.0mm x 67.5mm x 37.0mm)
- Series
- LXD75 (75W)
- Voltage - Output
- 83 ~ 166V
- Weight
- 1.7 lbs (771.1 g)
- Number of Outputs
- 1
- Dimming
- Analog
- Termination Style
- Wire Leads
- Ratings
- IP67
- Voltage - Isolation
- 3kV
- Features
- OVP, SCP
- Operating Temperature
- -35°C ~ 70°C
- Topology
- AC DC Converter
- Voltage - Input (Max)
- 305VAC
