529801B02500G
Thermal - Heat Sinks
- Manufacturer No:
- 529801B02500G
- Manufacture:
- Aavid, Thermal Division of Boyd Corporation
- Datasheet:
- 529801B02500G
- Description:
- HEATSINK TO-218 W/PINS 1.5"TALL
In Stock
973 pcs On sales
$1.41
Product Parameter
- Thermal Resistance @ Natural
- 5.00°C/W
- Type
- Board Level, Vertical
- Height Off Base (Height of Fin)
- 1.000" (25.40mm)
- Shape
- Rectangular, Fins
- Power Dissipation @ Temperature Rise
- 10.0W @ 50°C
- Width
- 1.650" (41.91mm)
- Thermal Resistance @ Forced Air Flow
- 2.00°C/W @ 500 LFM
- Length
- 1.500" (38.10mm)
- Series
- -
- Diameter
- -
- Material
- Aluminum
- Part Status
- Active
- Package Cooled
- TO-218
- Material Finish
- Black Anodized
- Attachment Method
- Bolt On and PC Pin
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
529801B02500G Relevant information
5298

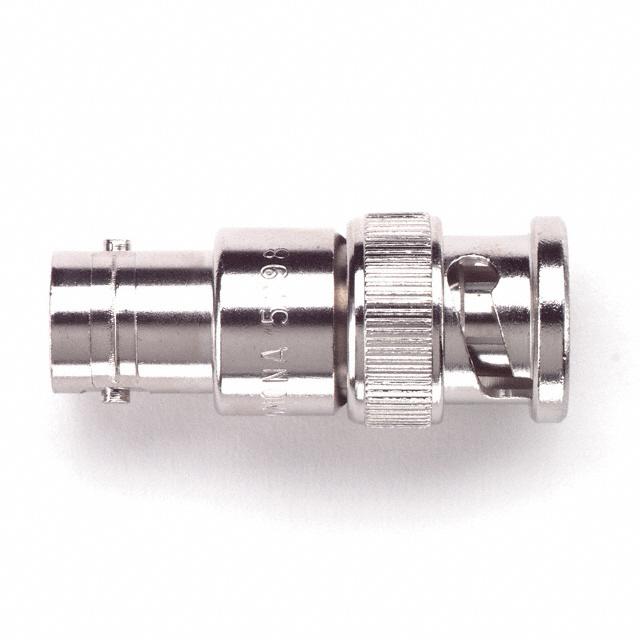

CONN ADAPT BNC PLUG - TRIAX JACK
