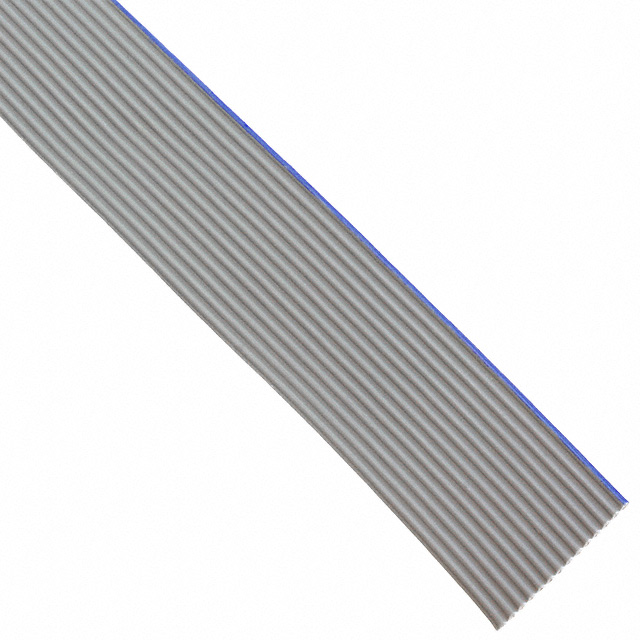

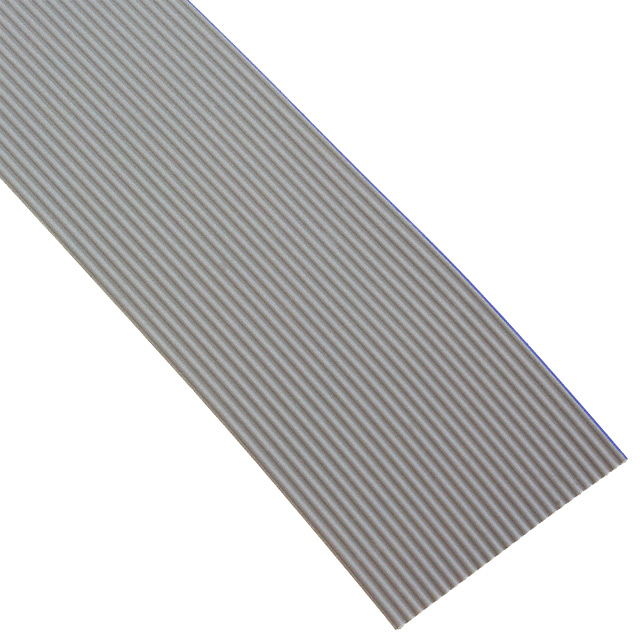

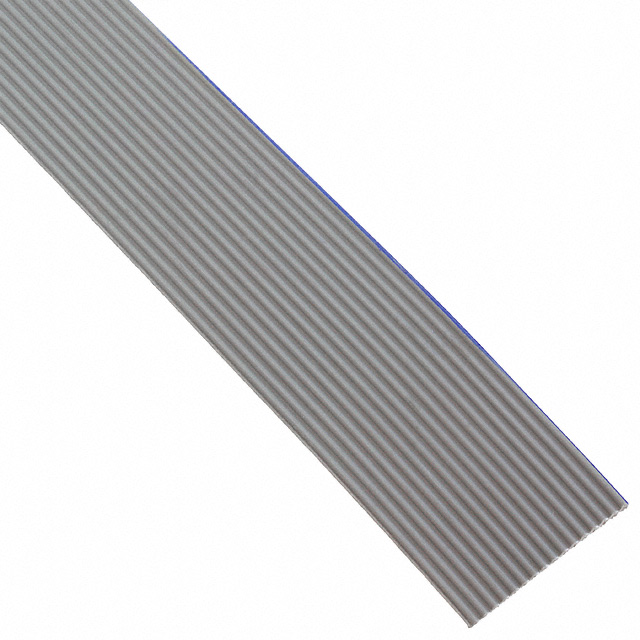

HF539/10
Flat Ribbon Cables
- Manufacturer No:
- HF539/10
- Manufacture:
- 3M
- Datasheet:
- HF539/10
- Description:
- CBL RIBN 10COND 0.050 GRAY 5'
In Stock
0 pcs On sales
$10.35
Product Parameter
- Part Status
- Active
- Jacket Color
- Gray
- Ribbon Width
- 0.500" (12.70mm)
- Pitch
- 0.050" (1.27mm)
- Conductor Strand
- 19 Strands / 40 AWG
- Length
- 5.0' (1.52m)
- Ribbon Thickness
- 0.035" (0.89mm)
- Series
- HF539
- Conductor Material
- Copper, Tinned
- Ratings
- UL Style 21682
- First Conductor Mark
- Blue
- Voltage
- 300V
- Number of Conductors
- 10
- Features
- Zippable
- Current Rating (Amps)
- 1A
- Shielding
- Unshielded
- Insulation Resistance
- 10GOhm
- Cable Type
- Flat Cable
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge
- 28 AWG
- Jacket (Insulation) Material
- Polyolefin (PO)
