248-1282-29-0602J
Sockets for ICs, Transistors - Adapters
- Manufacturer No:
- 248-1282-29-0602J
- Manufacture:
- 3M
- Datasheet:
- 248-1282-29-0602J
- Description:

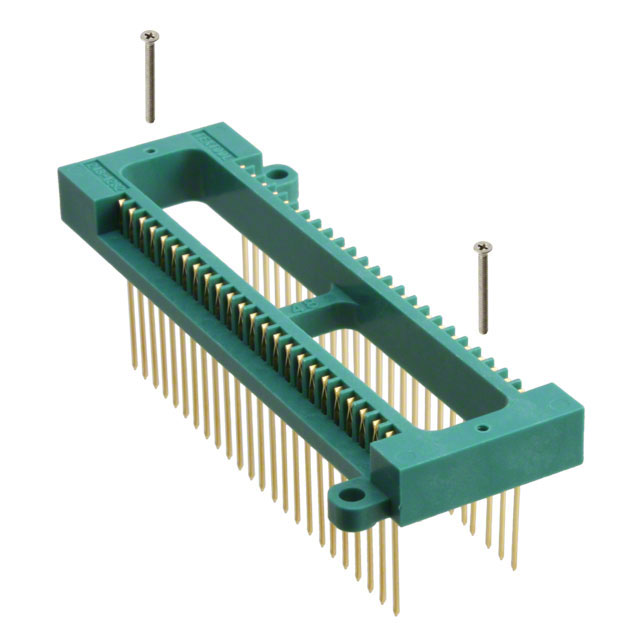

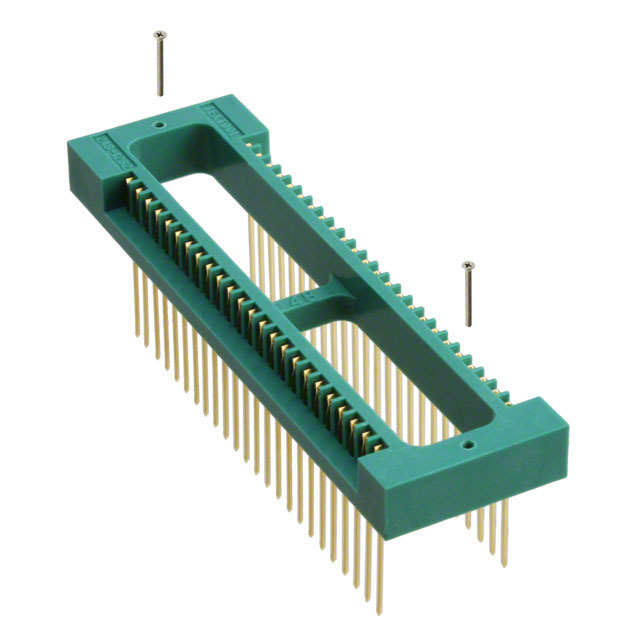

- RECEPTACLE DIP SOCKET 48POS .6"
In Stock
123 pcs On sales
$29.23
Product Parameter
- Series
- Textool™
- Operating Temperature
- -55°C ~ 125°C
- Features
- Closed Frame
- Contact Finish - Mating
- Gold
- Part Status
- Active
- Contact Material - Post
- Beryllium Copper
- Termination
- Solder
- Termination Post Length
- 0.130" (3.30mm)
- Pitch - Post
- 0.100" (2.54mm)
- Convert To (Adapter End)
- DIP, 0.6" (15.24mm) Row Spacing
- Mounting Type
- Through Hole
- Contact Material - Mating
- Beryllium Copper
- Board Material
- -
- Convert From (Adapter End)
- DIP, 0.6" (15.24mm) Row Spacing
- Number of Pins
- 48
- Material Flammability Rating
- UL94 V-0
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish Thickness - Post
- 30.0µin (0.76µm)
- Dielectric Material
- Polysulfone (PSU), Glass Filled
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Gold
- Current Rating (Amps)
- 1A
