228-1277-09-0602J

Sockets for ICs, Transistors - Adapters

Manufacturer No:: 228-1277-09-0602J
Manufacture:: 3M
Datasheet:: 228-1277-09-0602J

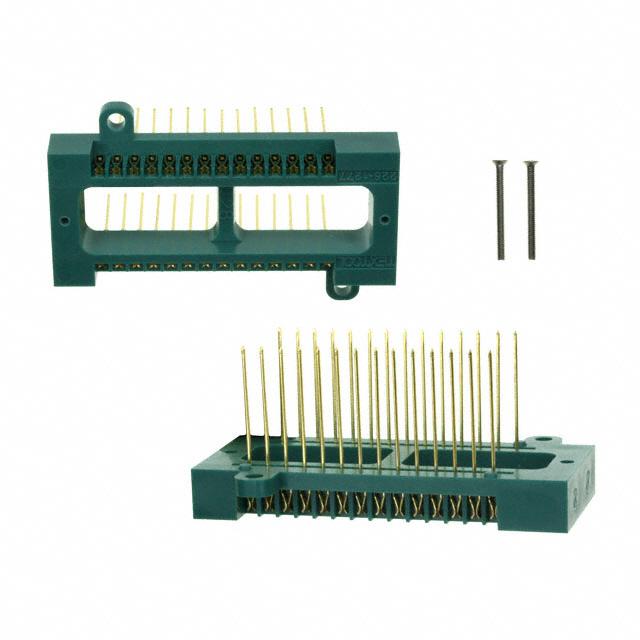

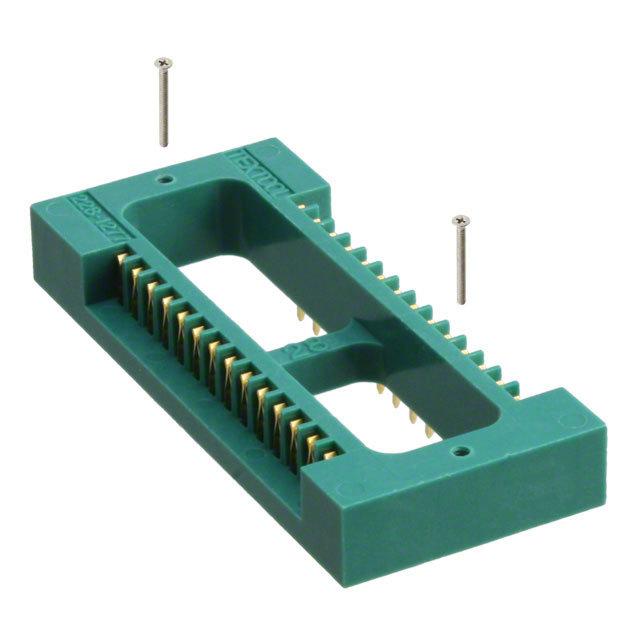

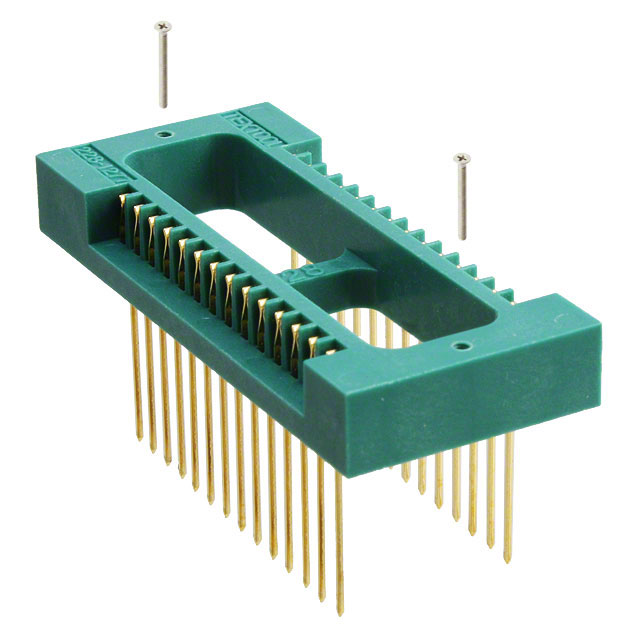

Description:: SOCKET ADAPTER 28DIP TO 28DIP

In Stock

35 pcs On sales

$18.06

Product Parameter

Part Status: Active

Contact Material - Post: Beryllium Copper

Termination: Solder

Termination Post Length: 0.130" (3.30mm)

Pitch - Post: 0.100" (2.54mm)

Convert To (Adapter End): DIP, 0.6" (15.24mm) Row Spacing

Mounting Type: Through Hole

Contact Material - Mating: Beryllium Copper

Board Material: -

Convert From (Adapter End): DIP, 0.6" (15.24mm) Row Spacing

Number of Pins: 28

Material Flammability Rating: UL94 V-0

Pitch - Mating: 0.100" (2.54mm)

Contact Finish Thickness - Post: 30.0µin (0.76µm)

Dielectric Material: Polysulfone (PSU), Glass Filled

Contact Finish Thickness - Mating: 30.0µin (0.76µm)

Contact Finish - Post: Gold

Current Rating (Amps): 1A

Series: Textool™

Operating Temperature: -55°C ~ 125°C

Features: -

Contact Finish - Mating: Gold
