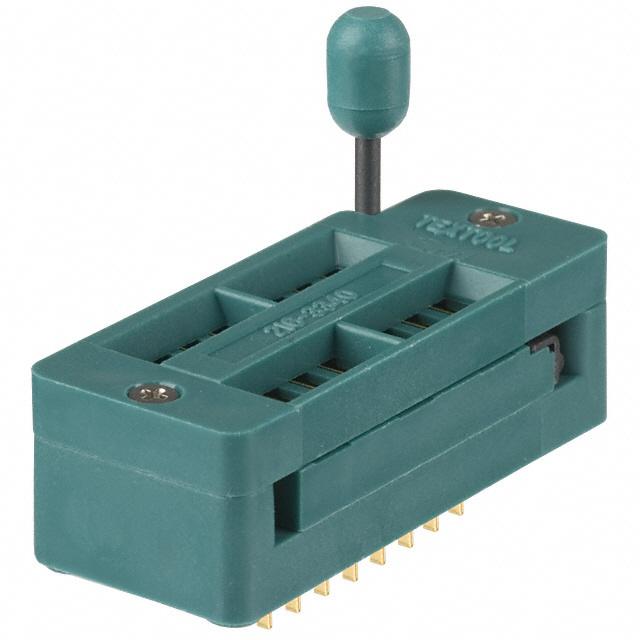

216-3340-09-0602J

Sockets for ICs, Transistors - Adapters

Manufacturer No:: 216-3340-09-0602J
Manufacture:: 3M
Datasheet:: 216-3340-09-0602J
Description:: SOCKET ADAPTER 16DIP TO 16DIP

In Stock

26 pcs On sales

$20.55

Product Parameter

Pitch - Mating: 0.100" (2.54mm)

Contact Finish Thickness - Post: 30.0µin (0.76µm)

Dielectric Material: Polysulfone (PSU), Glass Filled

Contact Finish Thickness - Mating: 30.0µin (0.76µm)

Contact Finish - Post: Gold

Current Rating (Amps): 1A

Series: Textool™

Operating Temperature: -55°C ~ 125°C

Features: Closed Frame

Contact Finish - Mating: Gold

Part Status: Active

Contact Material - Post: Beryllium Copper

Termination: Solder

Termination Post Length: 0.130" (3.30mm)

Pitch - Post: 0.100" (2.54mm)

Convert To (Adapter End): DIP, 0.3" (7.62mm) Row Spacing

Mounting Type: Through Hole

Contact Material - Mating: Beryllium Copper

Board Material: -

Convert From (Adapter End): DIP, 0.3" (7.62mm) Row Spacing

Number of Pins: 16

Material Flammability Rating: UL94 V-0
