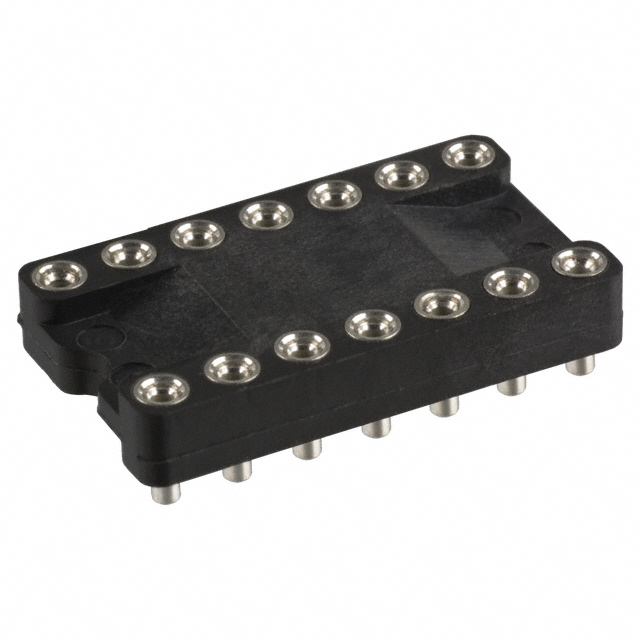

214-3339-19-0602J
Sockets for ICs, Transistors - Adapters
- Manufacturer No:
- 214-3339-19-0602J
- Manufacture:
- 3M
- Datasheet:
- 214-3339-19-0602J
- Description:
- RECEPTACLE DIP SOCKET 14POS .3"
In Stock
0 pcs On sales
$23.07
Product Parameter
- Number of Pins
- 14
- Material Flammability Rating
- UL94 V-0
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish Thickness - Post
- 30.0µin (0.76µm)
- Dielectric Material
- Polysulfone (PSU), Glass Filled
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Gold
- Current Rating (Amps)
- 1A
- Series
- Textool™
- Operating Temperature
- -55°C ~ 125°C
- Features
- Closed Frame
- Contact Finish - Mating
- Gold
- Part Status
- Active
- Contact Material - Post
- Beryllium Copper
- Termination
- Wire Wrap
- Termination Post Length
- 0.620" (15.75mm)
- Pitch - Post
- 0.100" (2.54mm)
- Convert To (Adapter End)
- DIP, 0.3" (7.62mm) Row Spacing
- Mounting Type
- Through Hole
- Contact Material - Mating
- Beryllium Copper
- Board Material
- -
- Convert From (Adapter End)
- DIP, 0.3" (7.62mm) Row Spacing
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
214-3339-19-0602J Relevant information

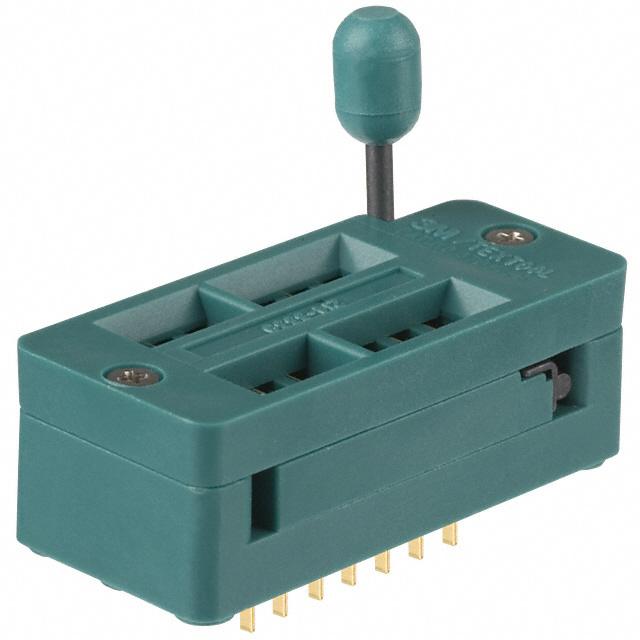

214-3339-00-0602J
CONN IC DIP SOCKET ZIF 14POS GLD
214-3339-09-0602J
SOCKET ADAPTER 14DIP TO 14DIP
214-3339-19-0602J
RECEPTACLE DIP SOCKET 14POS .3"

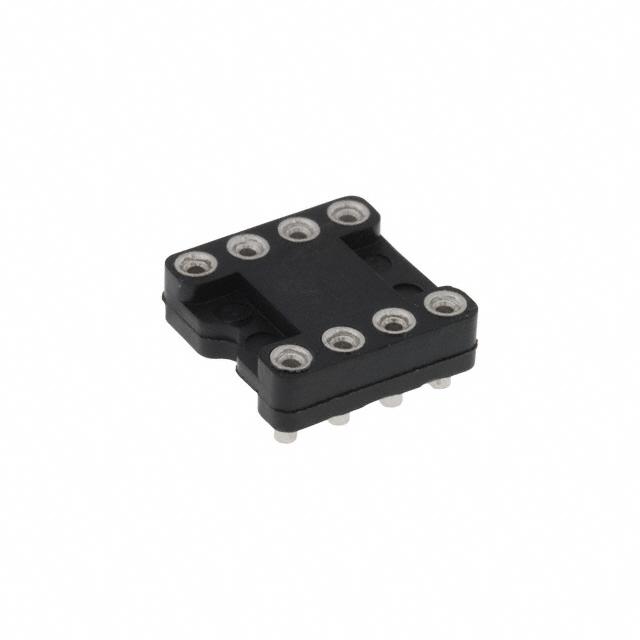

214-44-308-01-670800
CONN IC DIP SOCKET 8POS TIN
214-44-314-01-670800
CONN IC DIP SOCKET 14POS TIN

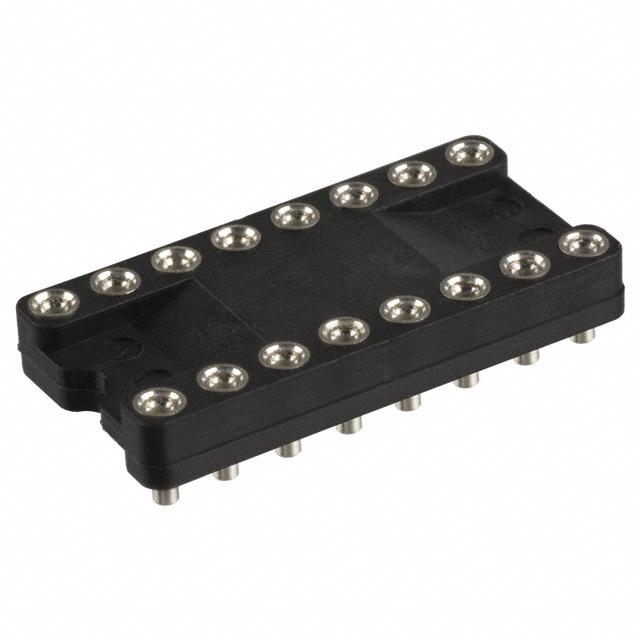

214-44-316-01-670800
