VEL24US240-US-JA
AC DC Desktop, Wall Adapters
- Manufacturer No:
- VEL24US240-US-JA
- Manufacture:
- XP Power
- Datasheet:
- VEL24US240-US-JA
- Description:
- AC/DC WALL MOUNT ADAPTER 24V 24W
In Stock
832 pcs On sales
$14.5
Product Parameter
- Polarization
- Positive Center
- Power (Watts)
- 24W
- Input Connector
- NEMA 1-15P
- Form
- Wall Mount (Class II)
- Region Utilized
- North America
- Series
- VEL24 (24W)
- Voltage - Input
- 90 ~ 264 VAC
- Weight
- 0.188 lb (85.28 g)
- Output Connector
- Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm
- Approvals
- CB, TUV, UL
- Size / Dimension
- 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm)
- Efficiency
- Level VI, CoC Tier 2
- Voltage - Output
- 24V
- Input Type
- Fixed Blade
- Operating Temperature
- 0°C ~ 50°C
- Cord Length
- 59" (1.50m)
- Current - Output (Max)
- 1A
- Part Status
- Active
- No Load Power Consumption
- 100mW (Max)
- Applications
- ITE (Commercial)
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
VEL24US240-US-JA Relevant information

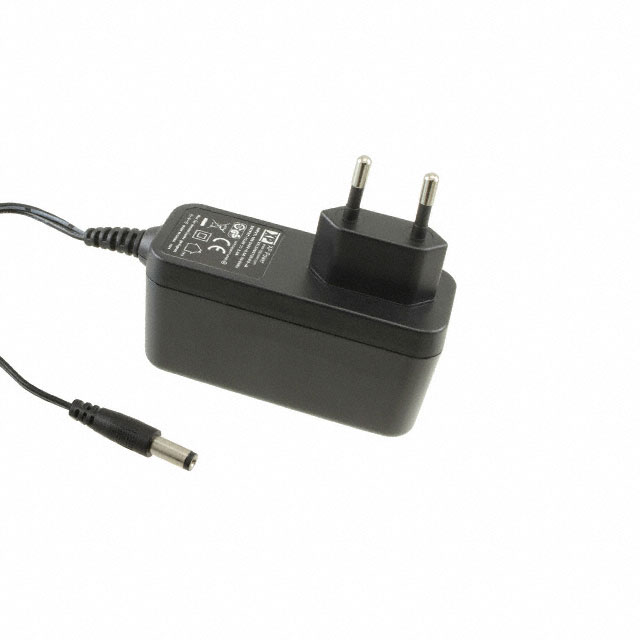

VEL24US120-EU-JA
AC/DC WALL MOUNT ADAPTER 12V 24W

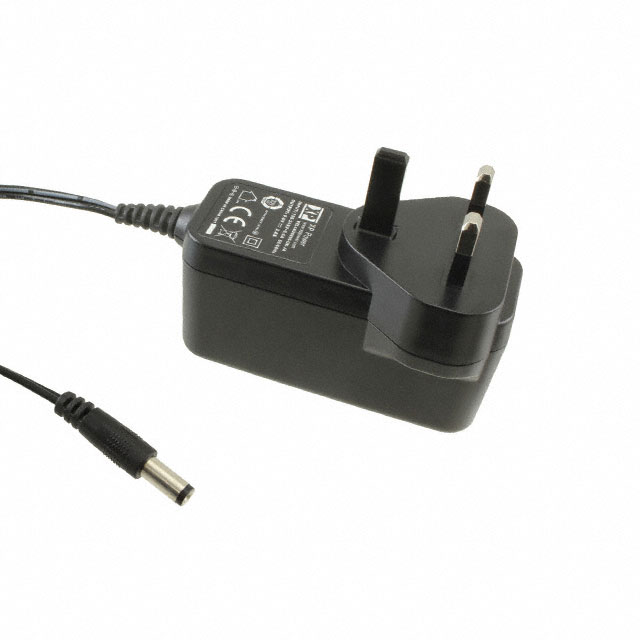

VEL24US120-UK-JA
