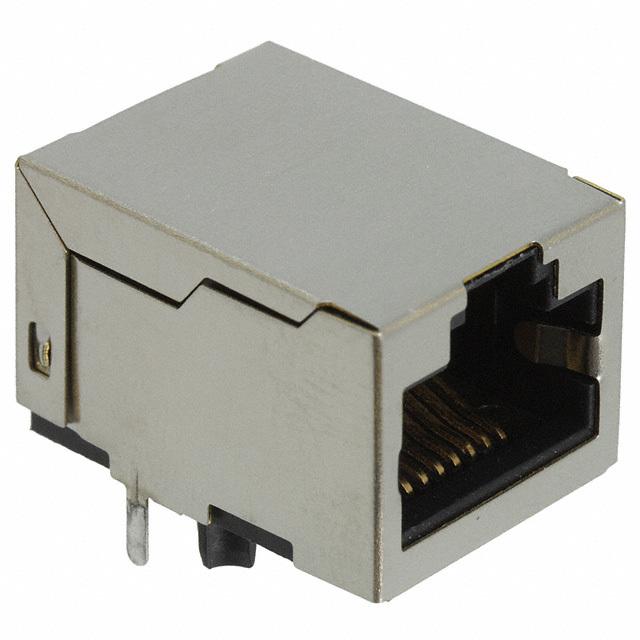

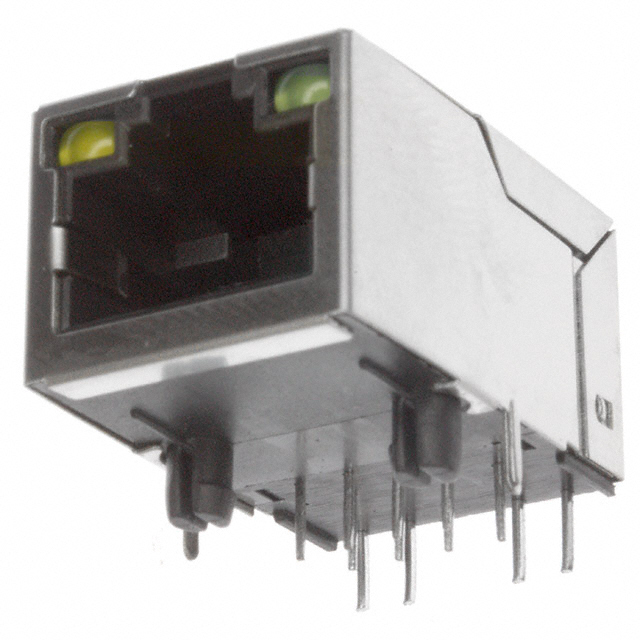

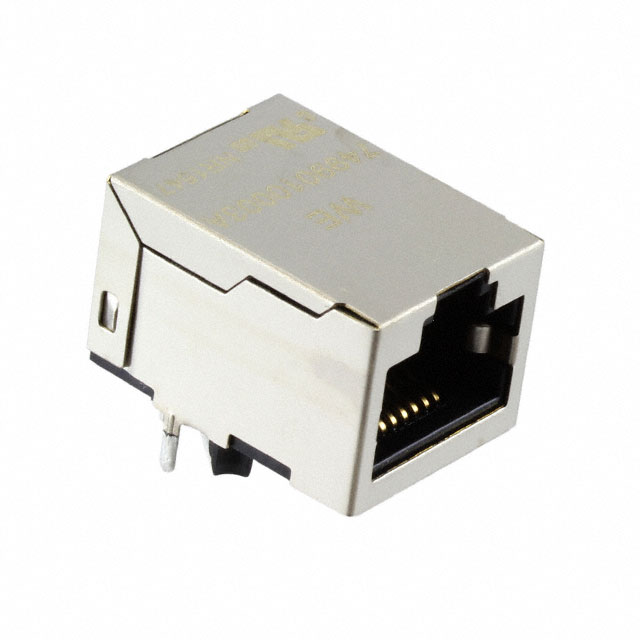

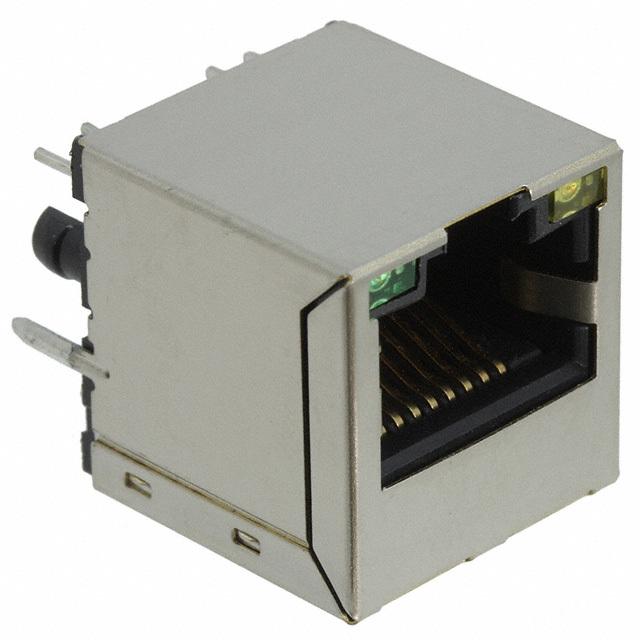

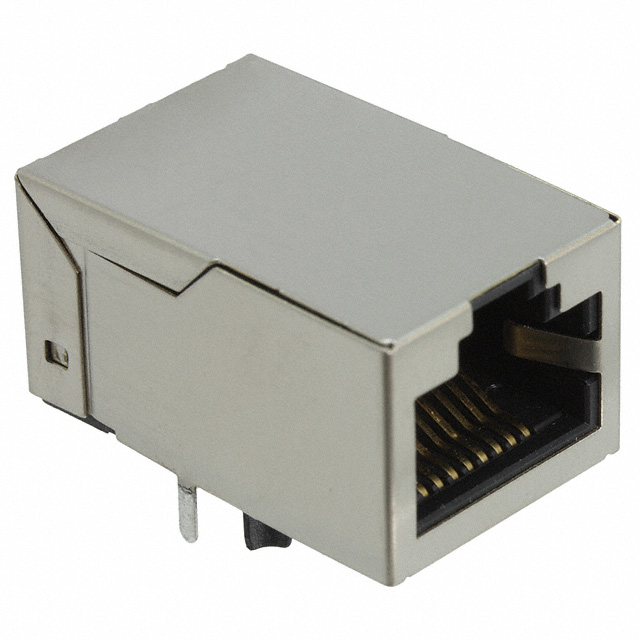

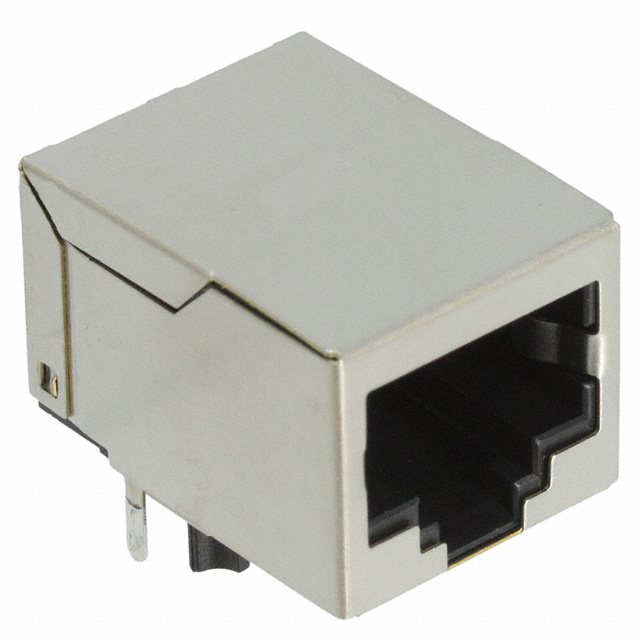

7499210124A

Modular Connectors - Jacks With Magnetics

Manufacturer No:: 7499210124A
Manufacture:: Wurth Electronics Inc.
Datasheet:: 7499210124A
Description:: CONN MAGJACK 1PORT 100 BASE-T

In Stock

299 pcs On sales

$11.17

Product Parameter

Mounting Type: Through Hole

Number of Cores per Jack: 6

Tab Direction: Up

Connector Type: RJ45

Series: WE-RJ45 LAN

Contact Finish: Gold

Features: Board Guide

Number of Rows: 1

LED Color: Yellow - Green

Number of Ports: 1

Packaging: Tube

Shield Material: Copper Alloy

Shielding: Shielded

Contact Material: Tin

Orientation: 90° Angle (Right)

Height Above Board: 0.531" (13.49mm)

Part Status: Active

Dielectric Material: Thermoplastic

Termination: Solder

Operating Temperature: -40°C ~ 85°C

Applications: 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE)

Contact Finish Thickness: 30.0µin (0.76µm)
