687106183722
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- 687106183722
- Manufacture:
- Wurth Electronics Inc.
- Datasheet:
- 687106183722
- Description:
- CONN FFC BTM 6POS 0.5MM SMD R/A
In Stock
2569 pcs On sales
$1.53
Product Parameter
- Actuator Color
- Black
- Current Rating (Amps)
- 0.4A
- Cable End Type
- Straight
- Operating Temperature
- -25°C ~ 85°C
- Contact Finish
- Tin
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.020" (0.50mm)
- Flat Flex Type
- FFC
- Contact Finish Thickness
- 120.0µin (3.05µm)
- Series
- WR-FPC
- Voltage Rating
- -
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Flip Lock
- Packaging
- Cut Tape (CT)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyamide (PA6T), Nylon 6T
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Ivory
- Height Above Board
- 0.047" (1.20mm)
- Mating Cycles
- 20
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 6
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
687106183722 Relevant information
6871
TABLE RUNNER ESD BLUE 4'X50'
68710614022
CONN FPC TOP 6POS 0.50MM R/A

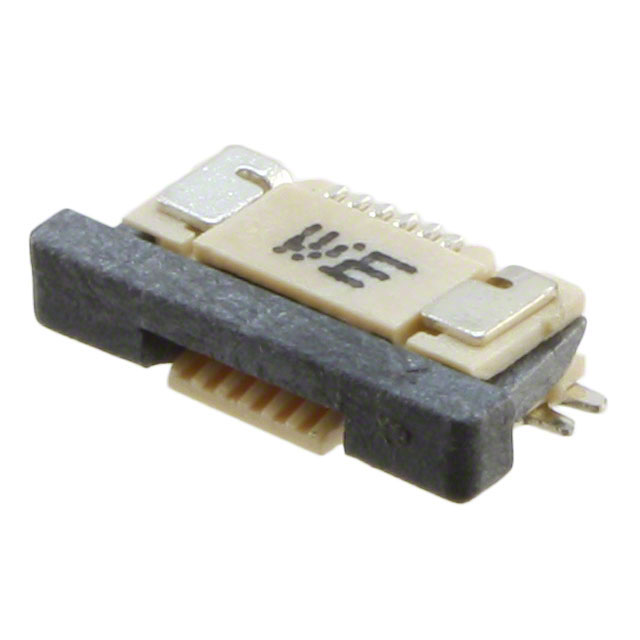

68710614522
CONN FPC BOTTOM 6POS 0.50MM R/A

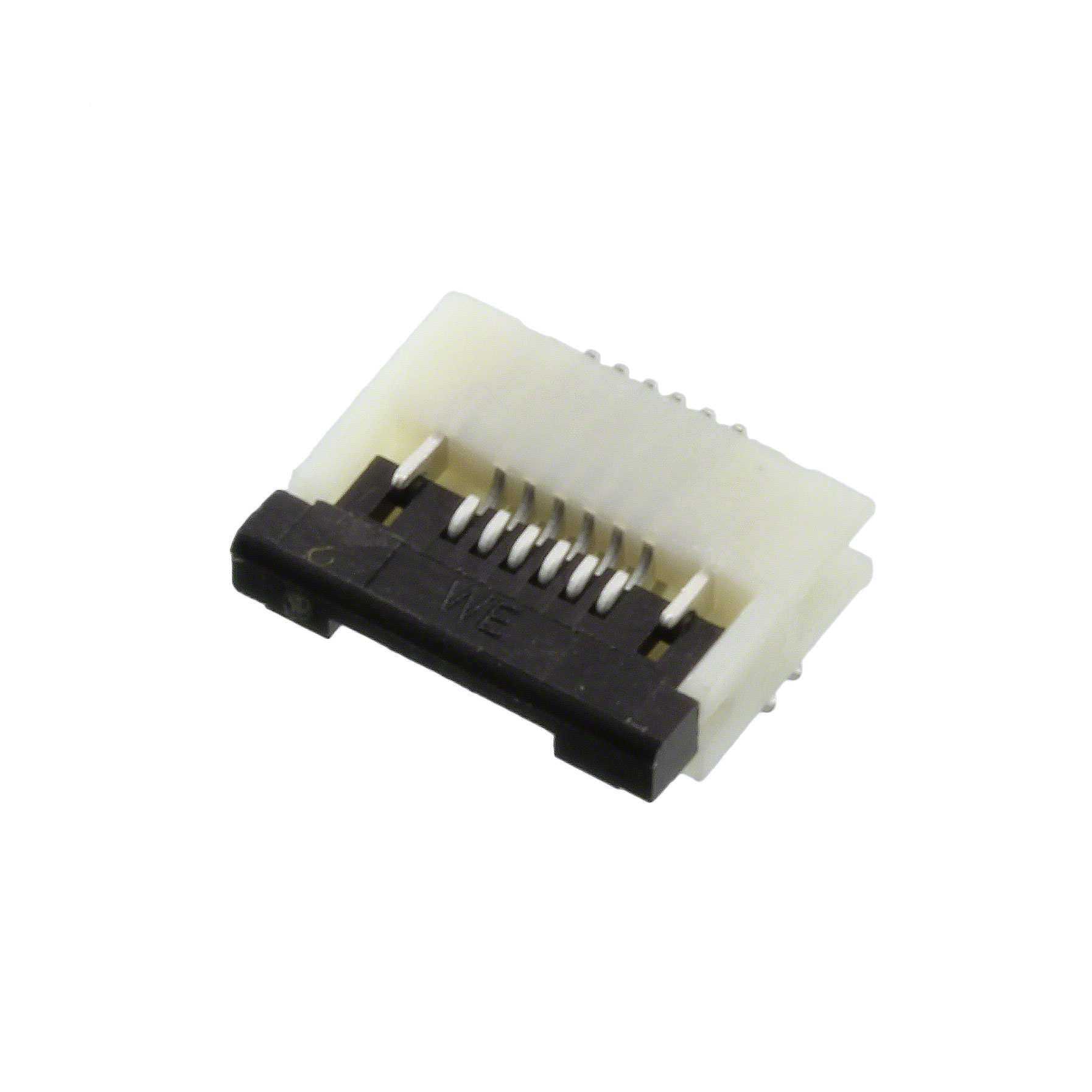

687106149022
CONN .5MM HORZ BOTTOM SMD 6POS
687106182122
CONN FFC FPC 6POS 0.5MM R/A

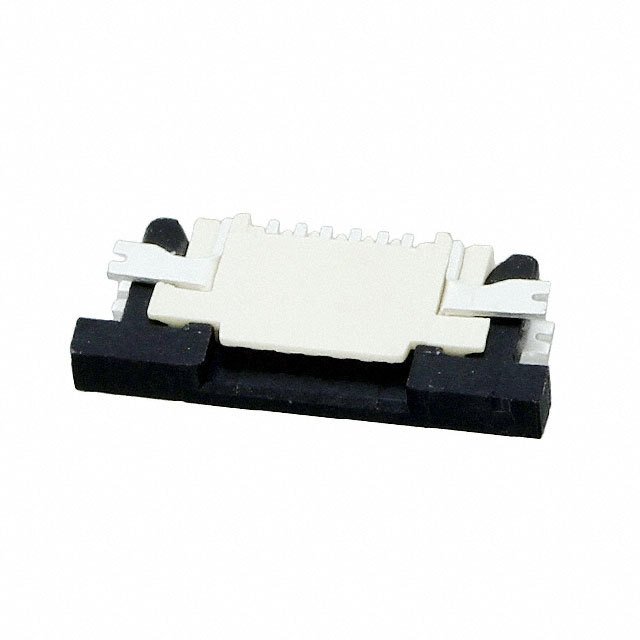

687106183622
