686122148922
FFC, FPC (Flat Flexible) Connectors
- Manufacturer No:
- 686122148922
- Manufacture:
- Wurth Electronics Inc.
- Datasheet:
- 686122148922
- Description:
- CONN 1MM HORZ BOTTOM SMD 22POS
In Stock
0 pcs On sales
$1.22
Product Parameter
- Actuator Color
- Black
- Current Rating (Amps)
- 1A
- Cable End Type
- Straight
- Operating Temperature
- -40°C ~ 105°C
- Contact Finish
- Tin
- Connector/Contact Type
- Contacts, Bottom
- Pitch
- 0.039" (1.00mm)
- Flat Flex Type
- FFC, FPC
- Contact Finish Thickness
- 120.0µin (3.05µm)
- Series
- WR-FPC
- Voltage Rating
- 100V
- Material Flammability Rating
- UL94 V-0
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Locking Feature
- Flip Lock
- Packaging
- Tape & Reel (TR)
- Contact Material
- Phosphor Bronze
- Part Status
- Active
- Actuator Material
- Polyamide (PA6T), Nylon 6T
- Termination
- Solder
- FFC, FCB Thickness
- 0.30mm
- Housing Color
- Ivory
- Height Above Board
- 0.087" (2.20mm)
- Mating Cycles
- 20
- Dielectric Material
- Polyamide (PA6T), Nylon 6T
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 22
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
686122148922 Relevant information
6861
TABLE RUNNER ESD BLUE 3'X50'
686104148922
CONN 1MM HORZ BOTTOM SMD 4POS

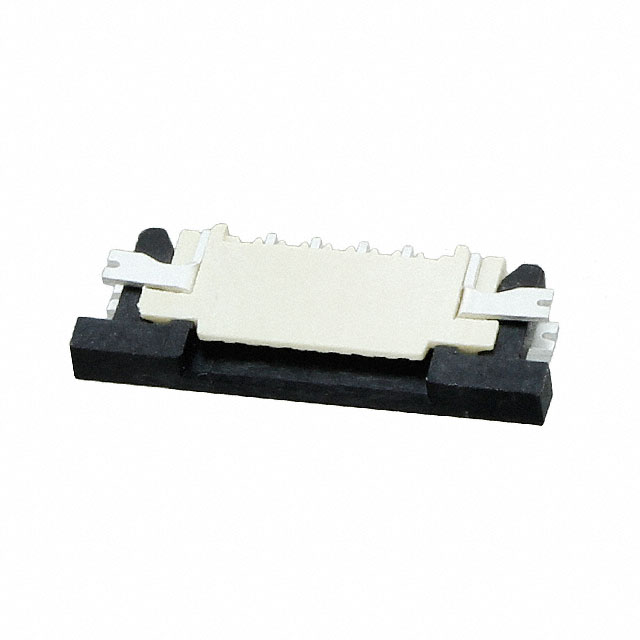

686104183422
CONN FFC TOP 4POS 1MM SMD R/A
686104183522
CONN FFC BTM 4POS 1MM SMD R/A

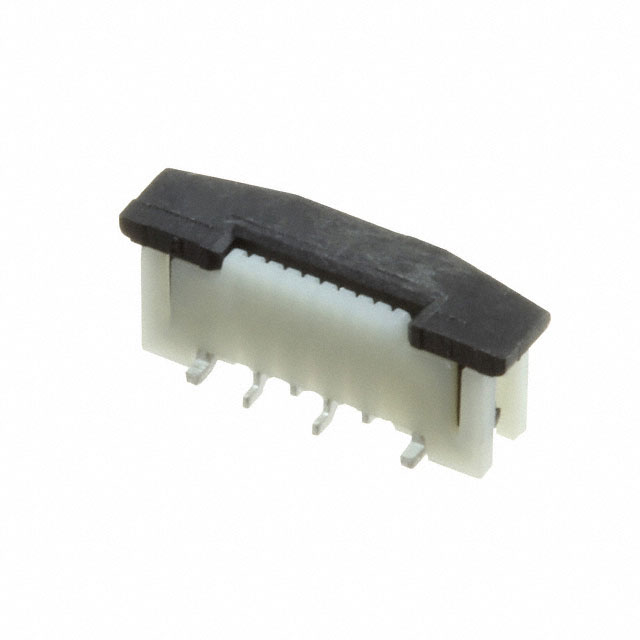

686104183822
