364A595BLB
Coaxial Connectors (RF)
- Manufacturer No:
- 364A595BLB
- Manufacture:
- Winchester Interconnect
- Datasheet:
- 364A595BLB
- Description:

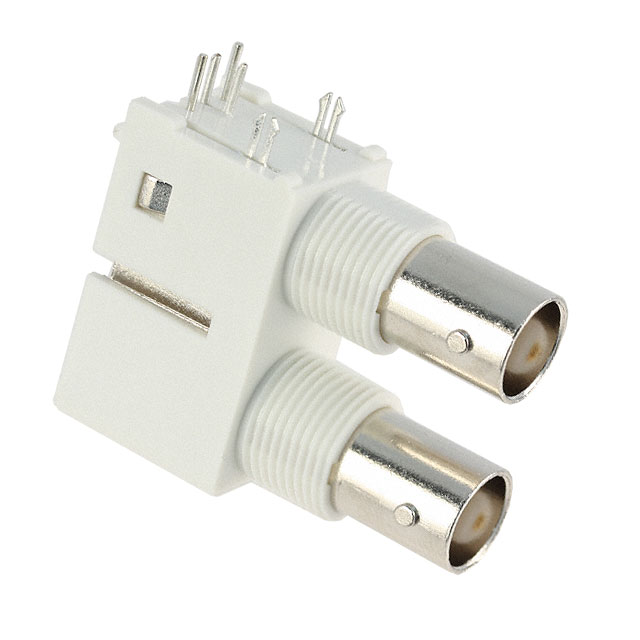

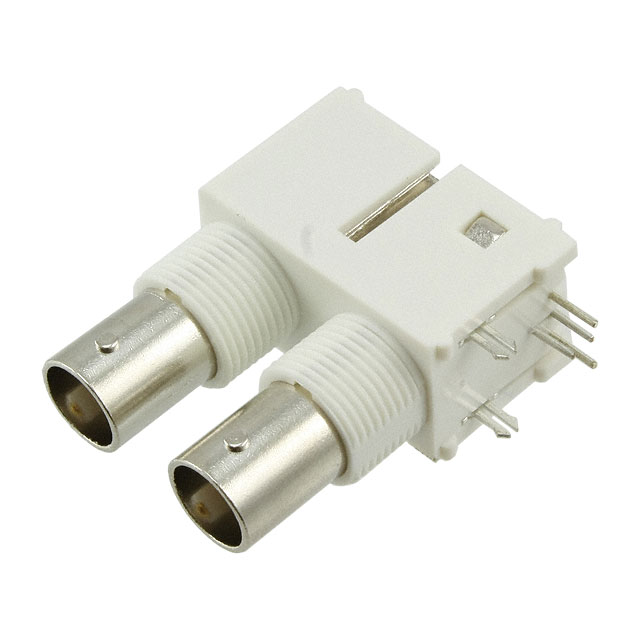

- CONN BNC JACK R/A 50 OHM PCB
In Stock
0 pcs On sales
$4.3
Product Parameter
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Dielectric Material
- Polypropylene (PP)
- Series
- -
- Connector Type
- Jack, Female Socket
- Operating Temperature
- -40°C ~ 165°C
- Features
- Board Guide, Isolated
- Fastening Type
- Bayonet Lock
- Center Contact Plating
- Gold
- Includes
- -
- Insertion Loss
- 0.2dB
- Center Contact Material
- Phosphor Bronze
- Impedance
- 50Ohm
- Voltage Rating
- 500V
- Packaging
- Bulk
- Connector Style
- BNC
- Body Finish
- Nickel
- Frequency - Max
- 4GHz
- Cable Group
- -
- Number of Ports
- 1
- Part Status
- Active
- Mounting Feature
- Bulkhead - Front Side Nut
- Body Material
- Brass
- Ingress Protection
- Weatherproof
- Housing Color
- Black, Silver
- Shield Termination
- Solder
- Mating Cycles
- 500
- Contact Termination
- Solder
