SIZ980DT-T1-GE3
Transistors - FETs, MOSFETs - Arrays
- Manufacturer No:
- SIZ980DT-T1-GE3
- Manufacture:
- Vishay / Siliconix
- Package:
- 8-PowerWDFN
- Datasheet:
- SIZ980DT-T1-GE3
- Description:
- MOSFET 2 N-CH 30V 8-POWERPAIR
In Stock
3000 pcs On sales
$0.66
Product Parameter
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 6.7mOhm @ 15A, 10V, 1.6mOhm @ 19A, 10V
- Supplier Device Package
- 8-PowerPair®
- Series
- TrenchFET®
- Gate Charge (Qg) (Max) @ Vgs
- 8.1nC @ 4.5V, 35nC @ 4.5V
- FET Type
- 2 N-Channel (Dual), Schottky
- Drain to Source Voltage (Vdss)
- 30V
- Packaging
- Tape & Reel (TR)
- Input Capacitance (Ciss) (Max) @ Vds
- 930pF @ 15V, 4600pF @ 15V
- FET Feature
- Standard
- Current - Continuous Drain (Id) @ 25°C
- 20A (Tc), 60A (Tc)
- Part Status
- Active
- Power - Max
- 20W, 66W
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerWDFN
- Vgs(th) (Max) @ Id
- 2.2V @ 250µA
Company Profile
Atlaschip is a globally authorized distributor of semiconductors and electronic components ,IC ,COF/ TAB ,Opencell for over 600 industry-leading manufacturer brands. a key resource for design engineers. We are guides innovation forward for the global leading technology manufacturers and service providers.
SIZ980DT-T1-GE3 Relevant information
SIZ900DT-T1-GE3
MOSFET 2N-CH 30V 24A POWERPAIR
SIZ902DT-T1-GE3
MOSFET 2N-CH 30V 16A POWERPAIR
SIZ904DT-T1-GE3
MOSFET 2N-CH 30V 12A POWERPAIR
SIZ910DT-T1-GE3
MOSFET 2N-CH 30V 40A POWERPAIR

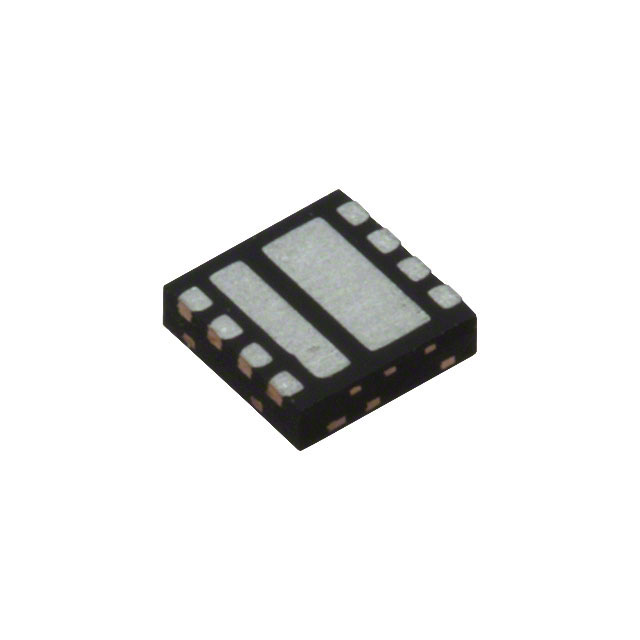

SIZ914DT-T1-GE3
